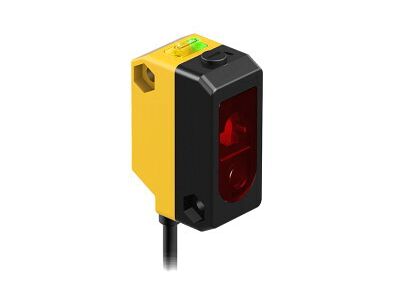

QS18VP6LAFQ1 Laser Diffuse Mode Sensor with Adjustable Background Suppression

QS18VP6LAFQ1

Laser Diffuse Mode Sensor with Adjustable Background Suppression, Operating voltage 10…30 VDC, Max. range 150 mm, Cable length 0.15 m, LED all-round visible, Cut-off point adjusted via potentiometer

  • SKU
    0662488755102
  • Manufacturer code
    3075510
  • Type of electric connection
    Connector M8
  • Construction type housing
    Cuboid
  • Ambient temperature
    -10 - 50 °C
  • Response time
    0.7 s
  • Switching frequency
    700 Hz
  • Laser protection class
    Class 1
  • Wavelength of the sensor
    650 nm
  • Type of light
    Polarity free red light
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Rated switching distance
    150 mm
  • Max. switching distance
    150 mm
  • Adjustment range
    1 - 150 mm
  • Housing material
    Plastic
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-41448-d0b16764ac99ff8faa5a2fdb21f34735.pdf (PDF, 156.19 kB)
