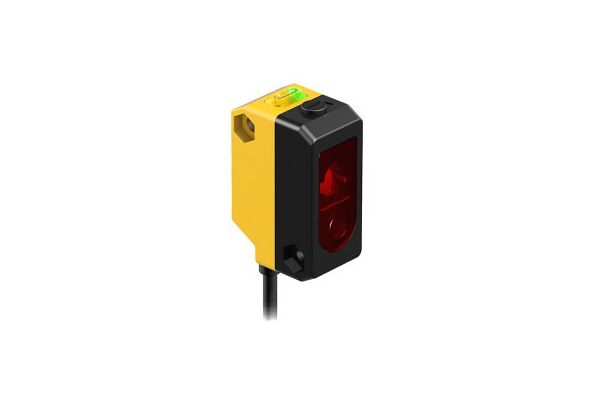

QS18VP6LAF250 W/30 Photoelectric Sensor, Laser Sensor, Diffuse Mode, with Adjustable Background Sup

QS18VP6LAF250 W/30

Photoelectric Sensor, Laser Sensor, Diffuse Mode, with Adjustable Background Suppression, Operating voltage 10…30 VDC, Max. range 250 mm, Cable length 9 m, Cable, PVC, 2 m, Protection class IP67, LED all-round visible, Cut-off point adjusted via potentiometer, Operating voltage: 10…30 VDC, PNP switching output, changeover

  • SKU
    0662488757403
  • Manufacturer code
    3075740
  • Type of electric connection
    Cable
  • Type of switching output
    PNP
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid

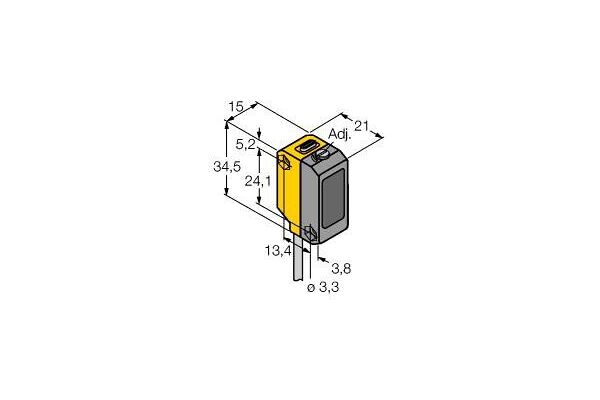

  • Width sensor
    15 mm
  • Height of sensor
    34.5 mm
  • Length of sensor
    21.1 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -10 - 50 °C
  • Response time
    0.7 s
  • Switching frequency
    700 Hz
  • Laser protection class
    Class 2
  • Wavelength of the sensor
    658 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Rated switching distance
    250 mm
  • Max. switching distance
    250 mm
  • Adjustment range
    1 - 250 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP
  • Cable length (m)
    2
    9

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-38273-68df4ba71c4e92e4b41b02e9d95a73ce.pdf (PDF, 345.05 kB)
