TM18VN6DV Photoelectric Sensor, Diffuse Mode Sensor

TM18VN6DV

Photoelectric Sensor, Diffuse Mode Sensor, Operating voltage 10…30 VDC, Max. range 500 mm, Cable length 2 m, Cable, 2 m, Protection class IP67, Ambient temperature: -40…+70 °C, Metal housing, 500 mm range, Operating voltage: 10…30 VDC, NPN switching output, light and dark operation

  • SKU
    0662488180355
  • Manufacturer code
    3018035
  • Type of electric connection
    Cable
  • Type of switching output
    NPN
  • Type of switch function
    Change-over contact (NO/NC)

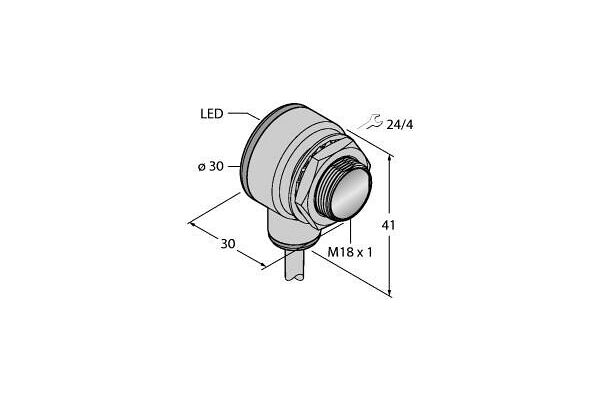

  • Width sensor
    30 mm
  • Height of sensor
    41 mm
  • Length of sensor
    30 mm
  • Sensing mode
    Light-/dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Response time
    3 s
  • Wavelength of the sensor
    880 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Setting procedure
    Other
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Max. switching distance
    500 mm
  • Diameter sensor
    18 mm
  • Housing material
    Metal
  • Type of switching output
    NPN
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-32719-cd010aa931509b0123e9db3dadf95f9f.pdf (PDF, 770.16 kB)
