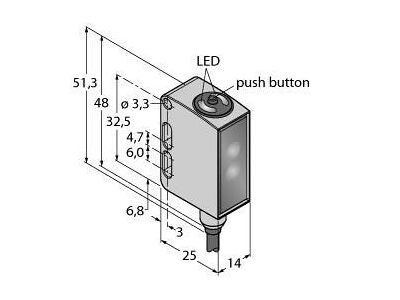

QM26VPAF400Q5 Photoelectric Sensor, Diffuse Mode Sensor with Adjustable Background Suppression

QM26VPAF400Q5

Photoelectric Sensor, Diffuse Mode Sensor with Adjustable Background Suppression, Operating voltage 10…30 VDC, Max. range 400 mm, Cable length 0.15 m, Range: 5 mm - 800 mm, Range: 5 mm - 800 mm, Range: 5 mm - 800 mm

  • SKU
    0662488287313
  • Manufacturer code
    3028731
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP
  • Type of switch function
    Change-over contact (NO/NC)
  • Construction type housing
    Cuboid
  • Width sensor
    14 mm
  • Height of sensor
    32.6 mm
  • Length of sensor
    15.3 mm
  • Material of optical surface
    Other
  • Ambient temperature
    -30 - 70 °C
  • Response time
    0.5 s
  • Wavelength of the sensor
    620 nm
  • Type of light
    Polarity free red light
  • Suitable for safety functions
    false
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Rated switching distance
    400 mm
  • Max. switching distance
    400 mm
  • Adjustment range
    5 - 400 mm
  • Housing material
    Metal
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-30525-9c31e4289e46da8a4381118417af6b5d.pdf (PDF, 188.03 kB)
