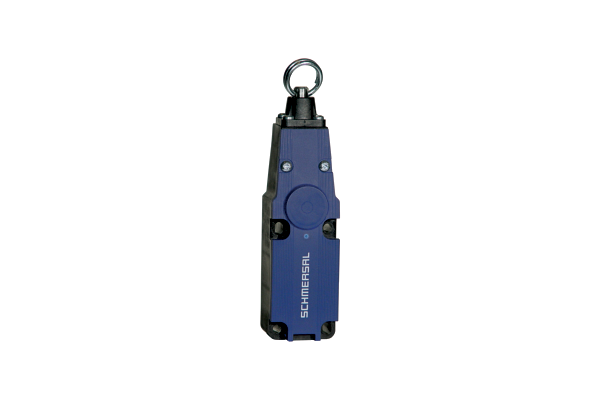

TQ 700-11 S Pull-wire switch

TQ 700-11 S
1 Cable entry M20
Thermoplastic enclosure
vertical mounting
Large wiring compartment
Twisting of towing eye not possible
wire pull detection
2 Contacts
  • SKU
    4030661410647
  • Manufacturer code
    101217092
  • Current, Thermal test current
    10 A
  • Type of Execution, IP Protection class, General
    IP67
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Switching principle
    Slow action
  • Electrical data, Cable section, maximum
    2.5 mm²
  • Electrical data, Max. fuse rating
    6 A gG D-fuse
  • Material, contacts, electrical
    Silver
  • Housing material
    Glass-fibre, thermoplastic
  • Material, housing cover
    Glass-fibre, thermoplastic
  • Standard, standards
    EN IEC 60947-5-1
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Number, NC contacts
    1
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    TÜV
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661410647
  • SAP, product group
    HAWA: Electromechanical switchgear
  • SAP, gross weight
    200.000 g
  • SAP, net weight
    200.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Voltage, Rated impulse withstand voltage
    6 kV
  • Voltage, rated insulation voltage
    500 V
  • Depth, General
    42.5 mm
  • Height, General
    160 mm
  • Width, General
    40.5 mm
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Force, Actuating force, maximum
    101.2 N
  • Force, Actuating force, minimum
    74.8 N

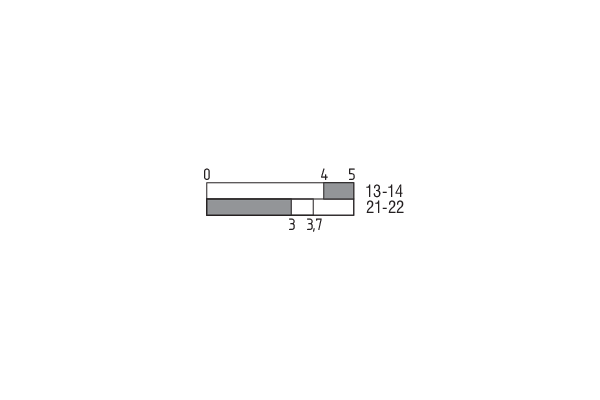

  • Type of switch function
    NO contact, NC contact
  • Type of electric connection
    Screw terminals M20 x 1.5
  • Web Type
    Product range
  • Number, NO contacts
    1
  • Selection (Yes/No), CADENAS
    Yes
  • Selection (Yes/No), Traceparts
    Yes

Product attachments

file-26887-3a0d626b4099bcdf7f11392892384937.pdf (PDF, 423.77 kB)
