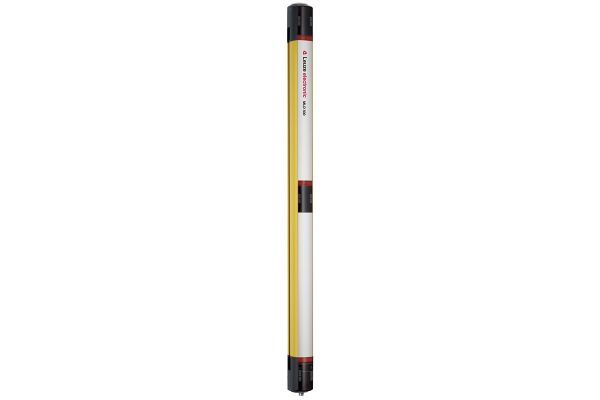

Multiple light beam safety device receiver with integrated status indicator and reflective element for laser alignment aid.

SKU

2110-66555200
Manufacturer code

66555200
Number of contact energized outputs with signalling function

0
Number of protected contact energized outputs

0
Number of beams

3
3
3
3
Model

Transmitter and receiver separated
Type of electric connection

Connector M12
Detection capability for test bodies

400 mm
Scope of delivery of the one-way system

Receiver
Voltage type

DC
Beam spacing

400 mm
Cascadable

false
With muting function

false
With beam coding

true
With monitoring function downstream switching devices

false
With restart blockage

false
Override possible

false
Pre failure notice

false
Condition analysis system

false
Explosion safety category for gas

None
Explosion safety category for dust

None
Type of safety according to IEC 61496-1

4
Ambient temperature

-30 - 55 °C
Width

52 mm
Height

900 mm
Length

64.7 m
Operation agent-safety class

Safety class 3
Number of protected semiconductor outputs

2
Type of switching output of the OSSD

PNP
Max. output current at protected output

380 mA
Response time

25 s
Switching voltage of OSSD at state "high"

18.2 V
Number of semiconductor outputs with signalling function

3
Beam spacing (mm)

400
Special version

Reflective element for laser alignment aid
Integrated status indicator
Performance Level (PL)

e
ISO Standard

EN ISO 13849-1
EN ISO 13849
Most suitable applications

Safety systems requiring high-performance level and safety integrity Environments needing precise alignment and status indication
Category

4
