This safety relay is designed for signal conversion of electronic safety outputs to potential-free relay contacts. It features automatic restart and supports feedback path integration for EDM.

SKU

2110-547954
Manufacturer code

547954
Model

Basic device
Rail mounting possible

true
Type of electric connection

Clip connection
Voltage type (supply voltage)

DC
Suitable for monitoring of emergency-stop circuits

false
Suitable for monitoring of valves

false
Suitable for monitoring of optoelectronic protection equipment

true
Suitable for monitoring of tactile sensors

false
Suitable for monitoring of magnetic switches

false
Suitable for monitoring of proximity switches

false
Evaluation inputs

Other
Power consumption

2.5 W
With start input

true
With muting function

false
With feedback circuit

true
Type of control voltage 1

AC
Number of outputs, safety related, undelayed, with contact

2
Number of outputs, safety related, delayed, with contact

0
Number of outputs, safety related, delayed, semiconductors

0
Number of outputs, signalling function, undelayed, with contact

1
Number of outputs, signalling function, delayed, semiconductors

0
Voltage type (operating voltage)

DC
Type of safety according to IEC 61496-1

None
Stop category according to IEC 60204

Other
Performance level according to EN ISO 13849-1

Level e
SIL according to IEC 61508

3
With approval for BG BIA

false
With approval according to UL

false
Width

17.5 mm
Height

99 mm
Depth

114.1 mm
Supply voltage DC

24 - 24 V
Number of outputs, safety related, undelayed, semiconductors

2
Operating voltage DC

24 - 24 V
Most suitable applications

Signal conversion of electronic safety outputs Feedback path integration for EDM
Ambient temperature, operation (°C)

0 ... 50
Type of switch function

2 NO contacts + 1 NC contact
Performance Level (PL)

e
Category

Up to 4 (depending on the category of the upstream protective device)
ISO Standard

EN ISO 13849-1
Number of safety-related switching outputs (OSSDs) (pcs)

2

Manufacturer Leuze
Need our help?

or call us at

An inquiry about MSI-RM2B-01

Please enter your inquiry below and we'll get back to you as soon as possible.

Company

Your name

E-mail

Phone number

Message

Product attachments

DS_MSI-RM2B-01_eng_547954 (LINK)

Cart

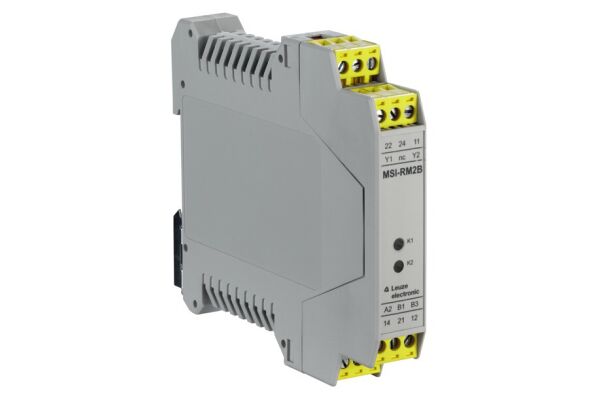

MSI-RM2B-01 Safety relay

Need our help?

An inquiry about MSI-RM2B-01

Product attachments

Related products

Cookie?

We use the following cookies:

MSI-RM2B-01 Safety relay

Need our help?

An inquiry about MSI-RM2B-01

Product attachments

Related products

MSI-RM2B-02 Safety relay

MSI-CM52B-01 Safety relay

MSI-CM52B-02 Safety relay

MSI-MC310 Safety relay

MSI-SR5B-01 Safety relay

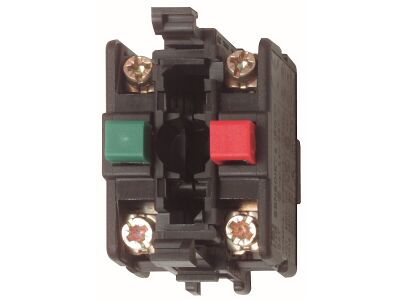

B4TU11 Contact block for bottom Mount 1NO+1NC, suitable for electronic circuits

HK11 Contact block 1NO + 1NC, K1-07D, suitable for electronic circuits

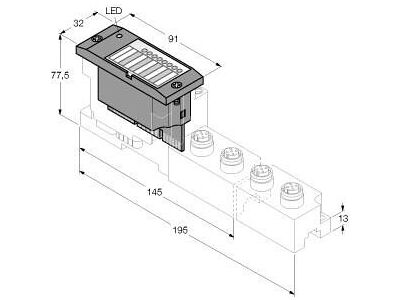

BL67-8DO-R-NO BL67 electronic module, 8 Isolated Relay Outputs, NO
