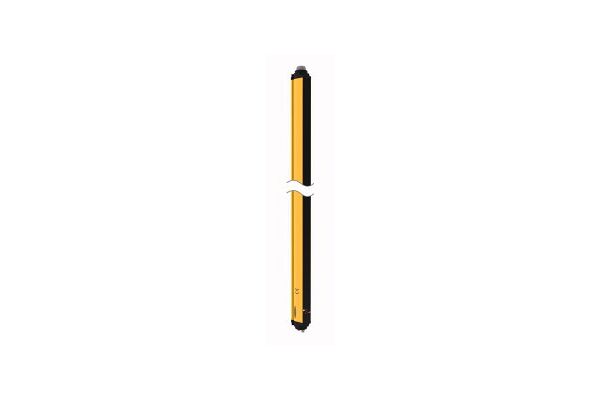

Safety Light Curtain, Active Transceiver with Muting Function, 4 Beams, Beam Spacing 300 mm, Operating voltage 19.2…28.8 VDC, Max. range 6500 mm, Active emitter/receiver element, Light beams: 4, Resolution: 300 mm, M12 male connector, 12-pin and 5-pin (muting sensor), Scan codes, automatic/manual — start/restart, integrated muting, EDM, Requires passive reflector element SGSB4-300, Range: 6.5 m, Operating voltage 24 VDC ±20 %, Scan field: 900 mm, SIL 3 (IEC 61508), PL e (ISO 13849-1)

SKU

0662488022778
Manufacturer code

3803235
Ambient temperature

0 - 55 °C
Wavelength of the sensor

950 nm
Max. output current at protected output

500 mA
Response time

12 s
Width

52 mm
Height

1006.35 mm
Length

56.9 m
Number of beams

4
Approvals / Compliance

SIL 3
Connector gender

male
Beam spacing (mm)

300

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Turck

Product attachments

file-31811-bc20ca0001d522b90d58d3879a64187f.pdf (PDF, 556.99 kB)

Cart

SGSMA4-300Q12 Safety Light Curtain, Active Transceiver with Muting Function, 4 Beams, Beam Spa

This product is unavailable

Product attachments

Related products

SGSMA4-300Q12 Safety Light Curtain, Active Transceiver with Muting Function, 4 Beams, Beam Spa

This product is unavailable

Product attachments

Related products

SGSSA4-300Q8 Safety Light Curtain, Active Transceiver, 4 Beams, Beam Spacing 300 mm

SGSMA4-400Q12 Safety Light Curtain, Active Transceiver with Muting Function, 4 Beams, Beam Spa

SGSSA4-400Q8 Safety Light Curtain, Active Transceiver, 4 Beams, Beam Spacing 400 mm

SGSMA3-400Q12 Safety Light Curtain, Active Transceiver with Muting Function, 3 Beams, Beam Spa

SGSMA2-500Q12 Safety Light Curtain, Active Transceiver with Muting Function, 2 Beams, Beam Spa

SGSSA2-500Q8 Safety Light Curtain, Active Transceiver, 2 Beams, Beam Spacing 500 mm

SGSSA3-400Q8 Safety Light Curtain, Active Transceiver, 3 Beams, Beam Spacing 380 mm

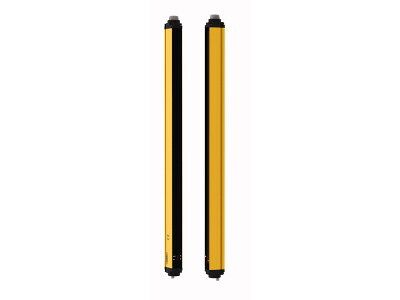

SGSMP4-300Q128 Safety Light Curtain, Emitter and Receiver with Muting Function, 4 Beams, Beam S
