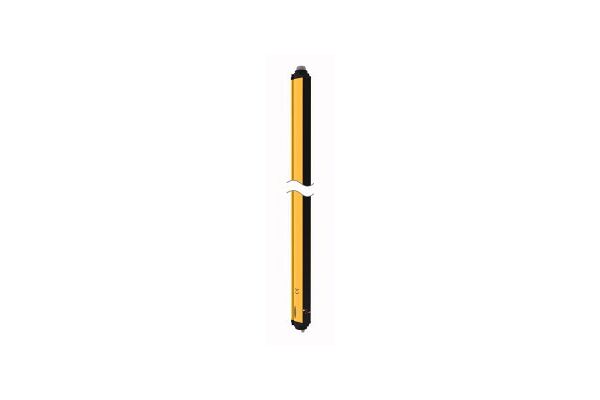

SGSSA3-400Q8 Safety Light Curtain, Active Transceiver, 3 Beams, Beam Spacing 380 mm

SGSSA3-400Q8

Safety Light Curtain, Active Transceiver, 3 Beams, Beam Spacing 380 mm, Operating voltage 19.2…28.8 VDC, Max. range 8000 mm, Active emitter/receiver element, Light beams: 3, Resolution: 400 mm, M12 male connector, 8-pin QD, Scan codes, automatic/manual — start/restart, EDM, Requires passive reflector element SGSB3-400, Range: 8 m, Operating voltage 24 VDC ±20 %, Scan field: 800 mm, SIL 3 (IEC 61508), PL e (ISO 13849-1)

  • SKU
    0662488022723
  • Manufacturer code
    3803230
  • Ambient temperature
    0 - 55 °C
  • Wavelength of the sensor
    950 nm
  • Max. output current at protected output
    500 mA
  • Response time
    12 s
  • Width
    52 mm
  • Height
    906.35 mm
  • Length
    56.9 m
  • Number of beams
    3
    3
    3
  • Approvals / Compliance
    SIL 3
  • Connector gender
    male
  • Beam spacing (mm)
    380

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments
