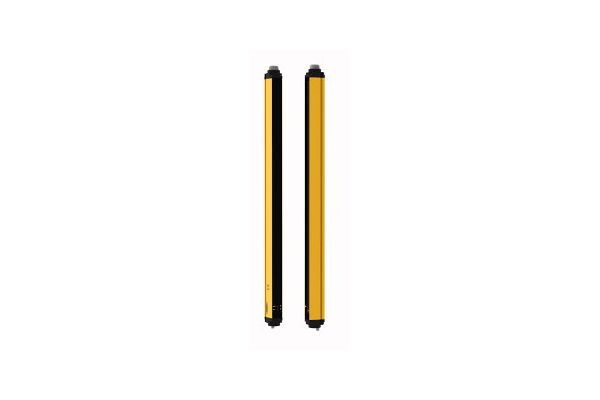

Safety Light Curtain, Emitter and Receiver with Muting Function, 3 Beams, Beam Spacing 380 mm, Operating voltage 19.2…28.8 VDC, Max. range 30000 mm, Emitter/receiver pair, Light beams: 3, Resolution: 400 mm, Receiver: M12 male connector, 12-pin and 5-pin (muting sensor), Emitter: M12 male connector, 8-pin, Scan codes, automatic/manual — start/restart, integrated muting, EDM, Range: 30 m, Operating voltage 24 VDC ±20 %, Scan field: 800 mm, SIL 3 (IEC 61508), PL e (ISO 13849-1)
- SKU0662488022686
- Manufacturer code3803226
- Ambient temperature0 - 55 °C
- Wavelength of the sensor950 nm
- Max. output current at protected output500 mA
- Response time13 s
- Width52 mm
- Height906.35 mm
- Length56.9 m
- Number of beams3
3
3 - Approvals / ComplianceSIL 3
- Connector gendermale - male
- Beam spacing (mm)380
This product is unavailable
This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
- Manufacturer Turck
