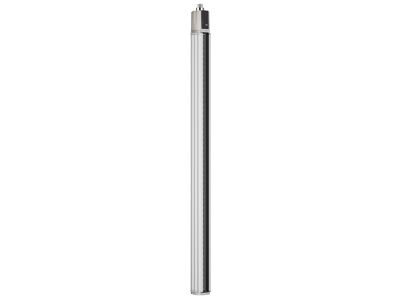

MLC520R30-1050-EX2 Safety light curtain receiver

MLC520R30-1050-EX2
A safety light curtain receiver designed for standard function packages, offering high safety with Type 4 and SIL 3 compliance.
  • SKU
    2110-68042310
  • Manufacturer code
    68042310
  • Fade-out possible
    false
  • Type of switching output of the OSSD
    PNP
  • Operation agent-safety class
    Safety class 3
  • Detection capability for test bodies
    30 mm
  • Explosion safety category for gas
    ATEX gas-ex-protection, Cat. 2G
  • Explosion safety category for dust
    ATEX dust-ex-protection, Cat. 2D
  • Cascadable
    false
  • Scope of delivery of the one-way system
    Receiver
  • With muting function
    false
  • Override possible
    false
  • Resolution of the light curtain
    30 mm
  • Reduced resolution
    false
  • Protective field height (mm)
    1050 mm
  • Type of safety according to IEC 61496-1
    4
  • Voltage type
    DC
  • With beam coding
    true
  • Clock control possible
    false
  • With monitoring function downstream switching devices
    false
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP65
  • Degree of protection (NEMA)
    Other
  • Type of electric connection
    Connector M12
  • Height of sensor
    1116 mm
  • Ambient temperature
    0 - 55 °C
  • Number of protected semiconductor outputs
    2
  • Number of protected contact energized outputs
    2
  • Max. output current at protected output
    380 mA
  • Switching voltage of OSSD at state "high"
    18 V
  • Width sensor
    30.7 mm
  • Length of sensor
    40.3 mm
  • Protective field height (mm)
    1050
  • Performance Level (PL)
    e
  • Category
    4
  • ISO Standard
    EN ISO 13849
    EN ISO 13849-1
  • Ex device category
    3G
    3D
  • Resolution (mm)
    30
  • Manufacturer Leuze

Product attachments

DS_MLC520R30-1050-EX2_eng_68042310 (LINK)
