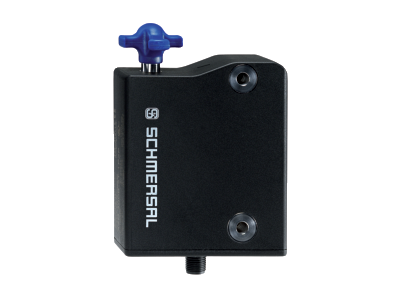

Individual coding with RFID technology
Coding level "High" according to ISO 14119
Connector M12, 8-pole
Diagnostic output
Individual coding
Suitable for mounting to profile systems
Thermoplastic enclosure
RFID-technology for needs-based protection against tampering
3 different directions of actuation
Compact design
3 LEDs to show operating conditions
Suitable for hinged and sliding guards
Series-wiring

SKU

4030661439846
Manufacturer code

103001464
Type of Execution, IP Protection class, General

IP67
IP66
IP69K
Type of Execution, Mechanical life, minimum,

1000000 Operations
Height, Sensor

100 mm
Length, Sensor

35 mm
Width, Sensor

85 mm
Electrical data, Utilisation category

DC-13
DC-12
Housing material

Glass-fibre, reinforced thermoplastic
Standard, standards

EN IEC 60947-5-1
EN ISO 13849-1
EN IEC 61508
EN IEC 60947-5-3
Number, Safety contacts

2
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

cULus
TÜV
ECOLAB
FCC
IC
Electrical data, Terminal, Connector, Transmitter, General

Connector M12, 8-pole, A-coded
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN IEC 61508
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661439846
SAP, product group

Initial
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

+0 ... +60 °C
Temperature, ambient temperature, maximum

60 °C
Temperature, ambient temperature, minimum

0 °C
Voltage, Rated impulse withstand voltage

0.8 kV
Voltage, rated insulation voltage

32 VDC
Web Type

Product range
Coding, Coding level according to EN ISO 14119

High
Current, Required rated short-circuit current to EN 60947-5-1

100 A
Type of Execution, Overvoltage category IEC/EN 60664-1

II
Note, General

For doors that are flush with the door frame, the optional m
For glass and Makrolon doors, the optional mounting kit MS-A
Safety parameters, Category, EN ISO 13849

4
Safety parameters, Performance Level,

e
Temperature, storage and transport temperature,[generated product variant]

-10 ... +90 °C
Temperature, storage and transport temperature, maximum

90 °C
Temperature, storage and transport temperature, minimum

-10 °C
Type of Execution, for degree of pollution VDE 0100

3
Type of Execution, Overvoltage category VDE 0100

3
Type of Execution, Protection class (Operating resource)

2
Note, LED switching conditions display

Supply voltage UB: LED green
Operating condition: LED green
Error / functional defect: LED red
Safety values, PFD value

0.00000000052 /h
Safety parameters, Safety Integrity Level (SIL)

3
Time, Reaction, maximum

100 ms
Selection (Yes/No), Integral System Diagnostics, status

Yes
Included in delivery, number and type, mounting material

2 x M6
Recommendation, actuator

AZ/AZM300-B1
Coding, general information

Individual coding
Current, consumption at 24V

5 mA
Current, consumption at 24V, safety inputs

5 mA
Current, Residual current, Fail-safe output, maximum

0.5 mA
Current, Rated operating current

50 mA
Current, Rated operating current, Safe digital outputs

250 mA
Current, Utilisation category DC-13, Diagnostic output

0.05 A
Current, Utilisation category DC-13, Fail-safe digital output

0.25 A
Type of execution, switching output, diagnostic output, electric

short-circuit proof, p-type
Type of execution, switching output, fail-safe output, electric

short-circuit proof, p-type
Area, ensured switch distance OFF S_ar

20 mm
Area, ensured switch distance ON S_ao

1 mm
Range, switch distance S, typical

2 mm
Electrical data, Connector 1, Pin assignment, PIN 1

A1 Supply voltage UB
Electrical data, Connector 1, Pin assignment, PIN 2

X1 Safety input 1
Electrical data, Connector 1, Pin assignment, PIN 3

A2 GND
Electrical data, Connector 1, Pin assignment, PIN 4

Y1 Safety output 1
Electrical data, Connector 1, Pin assignment, PIN 5

OUT Diagnostic output
Electrical data, Connector 1, Pin assignment, PIN 6

X2 Safety input 2
Electrical data, Connector 1, Pin assignment, PIN 7

Y2 Safety output 2
Electrical data, Connector 1, Pin assignment, PIN 8

without function
Electrical data, Fuse rating, Current, maximum

2 A
Electrical data, Inputs, Switching thresholds

−3 V … 5 V (Low)
15 V … 30 V (High)
Electrical data, inputs, switching thresholds for fail-safe inputs

−3 V … 5 V (Low)
15 V … 30 V (High)
Force, Latching force, adjustable, position 1

25 N
Force, Latching force, adjustable, position 2

50 N
Note, Mechanical lifetime

> 50,000 operations for door weights ≤ 5 kg
Actuating speed ≤ 0.5 m/s
Notes, length, sensor chain

Cable length and cross-section change the voltage drop depen
Review, Resistance to vibrations to EN 60068-2-6

10 … 150 Hz, amplitude 0.35 mm
Review, restistance to shock

30 g / 11 ms
Time, Duration of risk, maximum

200 ms
Time, switching frequency, approx.

0.5 Hz
Time, Time to readiness, maximum

5000 ms
Voltage, voltage drop Ud, maximum

4 V
Voltage, Utilisation category DC-13, Diagnostic output

24 VDC
Voltage, Utilisation category DC-13, Fail-safe digital output

24 VDC
Selection (Yes/No), Actuator monitored

Yes
Selection (Yes/No), Short-circuit recognition

Yes
Selection (Yes/No), latching

Yes
Selection (Yes/No), EPLAN

Yes
Selection (Yes/No), Safety functions

Yes
Selection (Yes/No), Series-wiring

Yes
Selection (Yes/No), Short circuit detection

Yes

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
