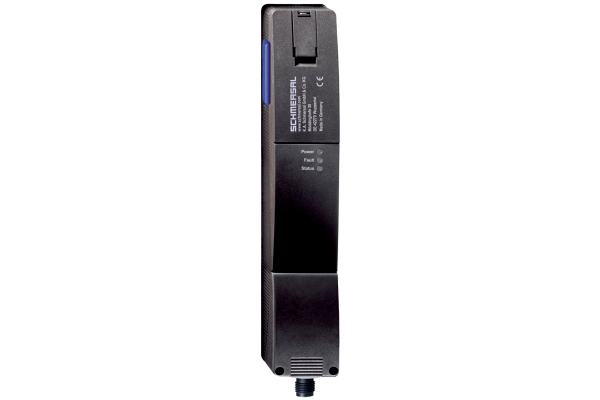

Thermoplastic enclosure
High holding force 2000
40 mm x 244 mm x 50 mm
Interlock with protection against incorrect locking.
Double-insulated
Long life
Integrated AS-Interface
Solenoid interlock with integrated AS-i Safety Interface
Universal repeatedly teachable or individual coding because of the RFID technology
I-variants with coding level HIGH to ISO 14119

SKU

4030661524184
Manufacturer code

103025858
Coding, Coding level according to EN ISO 14119

High
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661524184
SAP, product group

Initial
SAP, gross weight

540.794 g
SAP, net weight

540.794 g
Web Type

Product range
Type of Execution, IP Protection class, General

IP67
IP66
Type of Execution, Mechanical life, minimum,

1000000 Operations
Height, permissible installation height above sea level, maximum

2000 m
Height, Sensor

220 mm
Length, Sensor

50 mm
Width, Sensor

40 mm
Force, clamping force in accordance with EN ISO 14119

2000 N
Clamping force, maximum

2600 N
Force, Latching force

30 N
Housing material

Glass-fibre, reinforced thermoplastic
Movement, actuating speed, maximum

0.2 m/s
Standard, standards

EN ISO 13849-1
EN ISO 14119
EN IEC 61508
EN IEC 60947-5-3
EN IEC 62026-2
Note, Relative humidity

non-condensing
non-icing
Number, Actuating directions

2
PNV, standard, certificates

cULus
TÜV
ASi-SaW
FCC
IC
ANATEL
Electrical data, Terminal, Connector, Transmitter, General

Connector plug M12, 4-pole, (A-coding)
Safety parameter

EN ISO 13849-1
EN IEC 61508
Included in delivery, number and type, general

Actuator must be ordered separately.
Triangular key for AZM 201
Temperature, Ambient temperature[generated product variant]

-25 ... +60 °C
Temperature, ambient temperature, maximum

60 °C
Temperature, ambient temperature, minimum

-25 °C
Time, duty cycle solenoid

100 %
Voltage, Rated impulse withstand voltage

0.8 kV
Voltage, rated insulation voltage

32 VDC
Selection (Yes/No), Power to lock

Yes
Selection (Yes/No), Traceparts

Yes
Type of Execution, Degree of pollution IEC/EN 60664-1

3
Type of execution, mounting, Screws

2x M6
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Note, tightening torque, screw, housing cover

Torx T10
Temperature, storage and transport temperature,[generated product variant]

-25 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-25 °C
Torque, tightening torque, screw, housing cover, maximum

1.0 Nm
Torque, tightening torque, screw, housing cover, minimum

0.7 Nm
Selection (Yes/No), Manual release

Yes
Selection (Yes/No), CADENAS

Yes
Coding, general information

Individual coding
Type of application, Relative humidity, maximum

93 %
Note, LED switching conditions display

(2) LED red: Internal device error
(3) LED yellow: Device condition
Status and diagnostics: Transmitter + receiver
Recommendation, actuator

AZ/AZM201-B1
AZ/AZM201-B30
Review, Resistance to vibrations to EN 60068-2-6

10 … 150 Hz, amplitude 0.35 mm
Review, restistance to shock

30 g / 11 ms
Time, Duration of risk, maximum

200 ms
Time, Reaction, maximum

100 ms
Time, Switching frequency, maximum

1 Hz
Time, Time to readiness, maximum

4000 ms
Selection (Yes/No), latching

Yes
Selection (Yes/No), Safety functions

Yes
Selection (Yes/No), Integral System Diagnostics, status

Yes
Note, clamping force in accordance with EN ISO 14119

1,000 N when used with the AZ/AZM201-B30 actuator, for indoo
Note, clamping force, maximum

1,300 N when used with the AZ/AZM201-B30 actuator, for indoo
Selection (Yes/No), Actuator monitored

Yes
Current, consumption, AS-i, maximum

100 mA
Current, Consumption, External auxiliary voltage (AUX)

500 mA
Electrical Data, Inputs, AS-i, Channel 1

Data bits DI 0 / DI 1 = dynamic code transmission
Electrical Data, Inputs, AS-i, Channel 2

Data bits DI 2 / DI 3 = dynamic code transmission
Electrical Data, AS-i, Input module address

0
Electrical data, AS-i, Parameter bits, P0

Safety guard and actuator detected
Electrical data, AS-i, Parameter bits, P1

Solenoid interlock locked
Electrical data, AS-i, Parameter bits, P2

Magnet voltage in tolerance range
Electrical data, AS-i, Parameter bits, P3

Internal device error (FID)
Electrical data, AS-i, Profile

S-7.B.F.E
Electrical Data, AS-i, Specification

Safety-Slave
Electrical data, AS-i, Version

V 3.0
Electrical data, Connector, AS-i, PIN 1

AS-Interface +
Electrical data, Connector, AS-i, PIN 2

Aux - (P)
Electrical data, Connector, AS-i, PIN 3

AS-Interface -
Electrical data, Connector, AS-i, PIN 4

Aux + (P)
Electrical Data, Device protection, AS-i

Internal short-circuit proof
Elektrische Daten, Absicherung der Hilfspannung (AUX), Strom, maximum

4 A
Electrical data, Outputs, AS-i, DO 0

Solenoid control
Electrical data, Outputs, AS-i, DO 1

No Function
Electrical data, Outputs, AS-i, DO 2

No Function
Electrical data, Outputs, AS-i, DO 3

No Function
Note, Electrical data, AS-i, Input module address

Preset to address 0, can be changed through AS-interface bus
Note, Electrical data, AS-i, Parameter bits

FID: periphery error
Note, operating voltage, AS-i

Protection against polarity reversal
Note, operating voltage, auxiliary voltage

stabilised PELV power supply
Note, rated operating voltage, ASi

Protection against polarity reversal
Review, Coding, AS-i, ID-Code

0xB
Review, Coding, AS-i, ID-Code1

0xF
Review, Coding, AS-i, ID-Code2

0xE
Review, Coding, AS-i, IO-Code

0x7
Tolerance, operating voltage, auxiliary voltage, maximum

10 %
Tolerance, operating voltage, auxiliary voltage, minimum

-15 %
Voltage, Operating voltage, AS-i, maximum

31.6 VDC
Voltage, Operating voltage, AS-i, minimum

26.5 VDC
Voltage, rated operating voltage, ASi, maximum

31.6 VDC
Voltage, rated operating voltage, ASi, minimum

26.5 VDC
Voltage, Rated operating voltage, Auxiliary voltage (AUX)

24 VDC -15% / +10% (stabilised PELV)
Voltage, rated operating voltage, auxiliary voltage

24 VDC
Voltage, type, ASi

DC
Voltage, type, auxiliary voltage

DC
Power, transmit, RFID, maximum

-6 dB/m
Time, frequency band, RFID

125 kHz
Torque, tightening torque, screw, mounting, maximum

8 Nm
