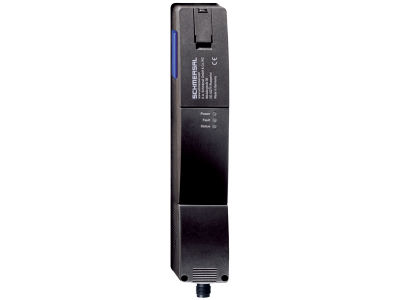

AZM201Z-ST-T-AS-A-P Machine safety solenoid interlock

AZM201Z-ST-T-AS-A-P
Thermoplastic enclosure
High holding force 2000
40 mm x 244 mm x 50 mm
Interlock with protection against incorrect locking.
Double-insulated
Long life
Integrated AS-Interface
Solenoid interlock with integrated AS-i Safety Interface
Universal repeatedly teachable or individual coding because of the RFID technology
I-variants with coding level HIGH to ISO 14119
  • SKU
    4030661524221
  • Manufacturer code
    103025862
  • Coding, Coding level according to EN ISO 14119
    Low
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661524221
  • SAP, product group
    Initial
  • SAP, gross weight
    538.640 g
  • SAP, net weight
    538.640 g
  • Web Type
    Product range
  • Type of Execution, IP Protection class, General
    IP67
    IP66
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Height, permissible installation height above sea level, maximum
    2000 m
  • Height, Sensor
    220 mm
  • Length, Sensor
    50 mm
  • Width, Sensor
    40 mm
  • Force, clamping force in accordance with EN ISO 14119
    2000 N
  • Clamping force, maximum
    2600 N
  • Force, Latching force
    30 N
  • Housing material
    Glass-fibre, reinforced thermoplastic
  • Movement, actuating speed, maximum
    0.2 m/s
  • Standard, standards
    EN ISO 13849-1
    EN ISO 14119
    EN IEC 61508
    EN IEC 60947-5-3
    EN IEC 62026-2
  • Note, Relative humidity
    non-condensing
    non-icing
  • Number, Actuating directions
    2
  • PNV, standard, certificates
    cULus
    TÜV
    ASi-SaW
    FCC
    IC
    ANATEL
  • Electrical data, Terminal, Connector, Transmitter, General
    Connector plug M12, 4-pole, (A-coding)
  • Safety parameter
    EN ISO 13849-1
    EN IEC 61508
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
    Triangular key for AZM 201
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +60 °C
  • Temperature, ambient temperature, maximum
    60 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Time, duty cycle solenoid
    100 %
  • Voltage, Rated impulse withstand voltage
    0.8 kV
  • Voltage, rated insulation voltage
    32 VDC
  • Selection (Yes/No), Power to lock
    Yes
  • Selection (Yes/No), Traceparts
    Yes
  • Type of Execution, Degree of pollution IEC/EN 60664-1
    3
  • Type of execution, mounting, Screws
    2x M6
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    III
  • Note, tightening torque, screw, housing cover
    Torx T10
  • Temperature, storage and transport temperature,[generated product variant]
    -25 ... +85 °C
  • Temperature, storage and transport temperature, maximum
    85 °C
  • Temperature, storage and transport temperature, minimum
    -25 °C
  • Torque, tightening torque, screw, housing cover, maximum
    1.0 Nm
  • Torque, tightening torque, screw, housing cover, minimum
    0.7 Nm
  • Selection (Yes/No), Manual release
    Yes
  • Selection (Yes/No), CADENAS
    Yes
  • Coding, general information
    Universal coding
  • Type of application, Relative humidity, maximum
    93 %
  • Note, LED switching conditions display
    (2) LED red: Internal device error
    (3) LED yellow: Device condition
    Status and diagnostics: Transmitter + receiver
  • Recommendation, actuator
    AZ/AZM201-B1
    AZ/AZM201-B30
  • Review, Resistance to vibrations to EN 60068-2-6
    10 … 150 Hz, amplitude 0.35 mm
  • Review, restistance to shock
    30 g / 11 ms
  • Time, Duration of risk, maximum
    200 ms
  • Time, Reaction, maximum
    100 ms
  • Time, Switching frequency, maximum
    1 Hz
  • Time, Time to readiness, maximum
    4000 ms
  • Selection (Yes/No), latching
    Yes
  • Selection (Yes/No), Safety functions
    Yes
  • Selection (Yes/No), Integral System Diagnostics, status
    Yes
  • Note, clamping force in accordance with EN ISO 14119
    1,000 N when used with the AZ/AZM201-B30 actuator, for indoo
  • Note, clamping force, maximum
    1,300 N when used with the AZ/AZM201-B30 actuator, for indoo
  • Current, consumption, AS-i, maximum
    100 mA
  • Current, Consumption, External auxiliary voltage (AUX)
    500 mA
  • Electrical Data, Inputs, AS-i, Channel 1
    Data bits DI 0 / DI 1 = dynamic code transmission
  • Electrical Data, Inputs, AS-i, Channel 2
    Data bits DI 2 / DI 3 = dynamic code transmission
  • Electrical Data, AS-i, Input module address
    0
  • Electrical data, AS-i, Parameter bits, P0
    Safety guard and actuator detected
  • Electrical data, AS-i, Parameter bits, P1
    Solenoid interlock locked
  • Electrical data, AS-i, Parameter bits, P2
    Magnet voltage in tolerance range
  • Electrical data, AS-i, Parameter bits, P3
    Internal device error (FID)
  • Electrical data, AS-i, Profile
    S-7.B.F.E
  • Electrical Data, AS-i, Specification
    Safety-Slave
  • Electrical data, AS-i, Version
    V 3.0
  • Electrical data, Connector, AS-i, PIN 1
    AS-Interface +
  • Electrical data, Connector, AS-i, PIN 2
    Aux - (P)
  • Electrical data, Connector, AS-i, PIN 3
    AS-Interface -
  • Electrical data, Connector, AS-i, PIN 4
    Aux + (P)
  • Electrical Data, Device protection, AS-i
    Internal short-circuit proof
  • Elektrische Daten, Absicherung der Hilfspannung (AUX), Strom, maximum
    4 A
  • Electrical data, Outputs, AS-i, DO 0
    Solenoid control
  • Electrical data, Outputs, AS-i, DO 1
    No Function
  • Electrical data, Outputs, AS-i, DO 2
    No Function
  • Electrical data, Outputs, AS-i, DO 3
    No Function
  • Note, Electrical data, AS-i, Input module address
    Preset to address 0, can be changed through AS-interface bus
  • Note, Electrical data, AS-i, Parameter bits
    FID: periphery error
  • Note, operating voltage, AS-i
    Protection against polarity reversal
  • Note, operating voltage, auxiliary voltage
    stabilised PELV power supply
  • Note, rated operating voltage, ASi
    Protection against polarity reversal
  • Review, Coding, AS-i, ID-Code
    0xB
  • Review, Coding, AS-i, ID-Code1
    0xF
  • Review, Coding, AS-i, ID-Code2
    0xE
  • Review, Coding, AS-i, IO-Code
    0x7
  • Tolerance, operating voltage, auxiliary voltage, maximum
    10 %
  • Tolerance, operating voltage, auxiliary voltage, minimum
    -15 %
  • Voltage, Operating voltage, AS-i, maximum
    31.6 VDC
  • Voltage, Operating voltage, AS-i, minimum
    26.5 VDC
  • Voltage, rated operating voltage, ASi, maximum
    31.6 VDC
  • Voltage, rated operating voltage, ASi, minimum
    26.5 VDC
  • Voltage, Rated operating voltage, Auxiliary voltage (AUX)
    24 VDC -15% / +10% (stabilised PELV)
  • Voltage, rated operating voltage, auxiliary voltage
    24 VDC
  • Voltage, type, ASi
    DC
  • Voltage, type, auxiliary voltage
    DC
  • Power, transmit, RFID, maximum
    -6 dB/m
  • Time, frequency band, RFID
    125 kHz
  • Torque, tightening torque, screw, mounting, maximum
    8 Nm
