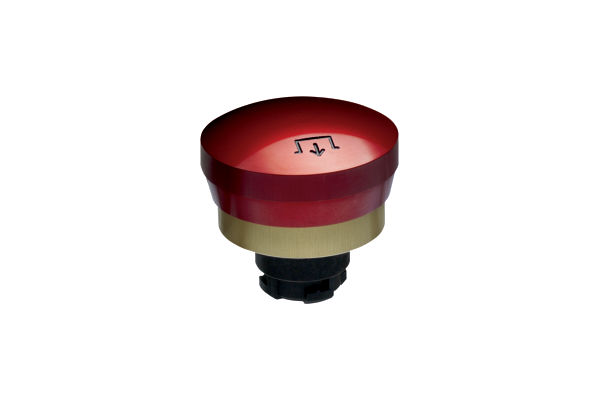

RDRZ45RT Emergency-stop push button

RDRZ45RT
Emergency stop latching pushbutton
with latching
  • SKU
    4030661455419
  • Manufacturer code
    101193576
  • Colour of the operating element
    Red
  • Type of Execution, construction form
    Round
  • Type of Execution, General
    Emergency stop pushbutton
  • Type of Execution, IP Protection class, General
    IP65
  • Type of Execution, Mechanical life, minimum,
    100000 Operations
  • Mounting method
    Mounting flange EFM
  • Diameter, hole, mounting diameter
    22.3 mm
  • Height, General
    27.5 mm
  • Stroke, Actuating stroke
    4 mm
  • Thickness, Front panel, maximum
    6 mm
  • Thickness, Front panel, minimum
    1 mm
  • Material, operators
    Aluminium powder-coated
  • Standard, standards
    EN ISO 13850
  • PIM maintenance status
    Discharge "Online catalog"
  • Review, restistance to shock
    50 g
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661455419
  • SAP, product group
    Initial
  • SAP, gross weight
    110.000 g
  • SAP, net weight
    110.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +75 °C
  • Temperature, ambient temperature, maximum
    75 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Tolerance, absolute
    0.4
  • Tightening torque, tightening torque, screw
    0.6 Nm
  • Web Type
    Product range
  • Selection (Yes/No), Safety functions
    Yes
  • Selection (Yes/No), Full insulation
    Yes
  • Selection (Yes/No), External snap mechanism, integrated
    Yes
  • Selection (Yes/No), latching
    Yes
  • Selection (Yes/No), Traceparts
    Yes
  • Colour of the front ring
    Yellow
  • Type of Execution, Terminals, mechanical
    arbitrarily
  • Design, Sealing
    Lip gaskets
    Membrane
    Form seals
  • Diameter, Actuating head
    45 mm
  • Distance, Grid dimensions [mm]
    50 x 60 mm
  • Material, front ring
    Aluminium
  • Selection (Yes/No), Mounting flange
    Yes
  • Selection (Yes/No), Emergency-Stop button
    Yes
  • Diameter, total
    45 mm

Product attachments

file-26230-fcc55e9312ba846eadbf3f84b50eaf17.pdf (PDF, 910.63 kB)
