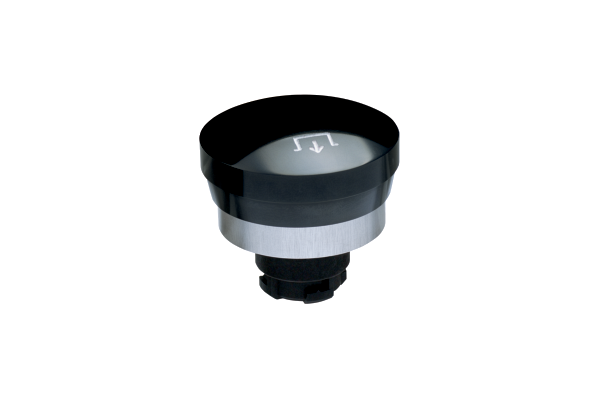

EX-RDRZ45SW EX command push button

EX-RDRZ45SW
Emergency stop latching pushbutton
Ex-Zone 1 and 21
  • SKU
    4030661601618
  • Manufacturer code
    101195091
  • Type of Execution, construction form
    Round
  • Diameter, hole, mounting diameter
    22.3 mm
  • Stroke, Actuating stroke
    4 mm
  • Thickness, Front panel, maximum
    6 mm
  • Explosion protection parameters, category
    2G
    2D
  • Explosion protection parameters, designation
    D II 2G Ex ib IIC Gb
    D II 2D Ex ib IIIC Db
  • Explosion protection, regulations
    EN IEC 60079-0
    EN 60079-31
    EN 60079-14
    EN 60079-11
  • Explosion protection parameters, zones
    22
    2
    1
    21
  • Material, front ring
    Aluminium
  • Material, identification label
    Stainless steel (V4A)
  • Standard, standards
    EN IEC 60947-5-1
    EN ISO 13849-1
    EN IEC 60947-5-5
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    IEC Ex
    TÜV
  • Safety parameters, Mission time
    20 Year(s)
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661601618
  • SAP, product group
    Initial
  • SAP, gross weight
    146.000 g
  • SAP, net weight
    146.000 g
  • Temperature, ambient temperature, maximum
    55 °C
  • Web Type
    Product range

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal

Product attachments

file-26277-55153db9abec01fa40f1fffcd6c22003.pdf (PDF, 1.62 MB)
