3 cable entries M 20 x 1.5
Metal enclosure
one-side operation
wire up to 75 m long
Release push button
Position indicator
Robust design
Large wiring compartment
Twisting of towing eye not possible
External watertight collar
wire pull and breakage detection

SKU

4030661332765
Manufacturer code

101184332
Current, Thermal test current

6 A
Current, Utilisation category AC-15

4 A
Current, Utilisation category DC-13

1 A
Type of Execution, IP Protection class, General

IP65
IP67
Type of Execution, Mechanical life, minimum,

1000000 Operations
Switching principle

Snap action
Length, wire, maximum

75 m
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Cable section, minimum

0.75 mm²
Electrical data, Max. fuse rating

6 A gG D-fuse
Electrical data, Utilisation category

DC-13
AC-15
Material, contacts, electrical

Silver
Housing material

Metal, zinc die-cast
Material, housing cover

Glass-fibre, thermoplastic
Standard, standards

EN IEC 60947-5-1
EN IEC 60947-5-5
EN ISO 13850
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Note, General

For lengths of over 10 m, intermediate wire supports must be
Recommended cable lengths for pull-wire Emergency-Stop switc
As the thimbles are subject to deformation in case of wire p
At 2 m ... 5 m distance intermediate wire supports are requi
The screwed G24-M20 indicator lamp must be ordered separatel
Number, Auxiliary contacts

1
Number, Safety contacts

3
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

TÜV
Type of switch function

NO contact, NC contact
Type of electric connection

Screw terminals M20 x 1.5
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661332765
SAP, product group

HAWA: Electromechanical switchgear
SAP, gross weight

1340.000 g
SAP, net weight

1340.000 g
Temperature, Ambient temperature[generated product variant]

-25 ... +70 °C
Temperature, ambient temperature, maximum

70 °C
Temperature, ambient temperature, minimum

-25 °C
Voltage, Rated impulse withstand voltage

6 kV
Voltage, rated insulation voltage

500 V
Voltage, Utilisation category AC-15

230 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
Selection (Yes/No), Traceparts

Yes
Selection (Yes/No), Indicator lamp

No
Type of application, Relative humidity, maximum

95 %
Height, Sensor[generated product variant]

220.3 ... 236.3 mm
Height, Sensor, maximum

236.3 mm
Height, Sensor, minimum,

220.3 mm
Length, Sensor

69.7 mm
Width, Sensor

71.5 mm
Material, enclosure coating

painted
Selection (Yes/No), CADENAS

Yes

Manufacturer Schmersal
Need our help?

or call us at

An inquiry about ZQ 900-13

Please enter your inquiry below and we'll get back to you as soon as possible.

Company

Your name

E-mail

Phone number

Message

Product attachments

file-25864-427858f0a668e47bbf8f95104c403a3f.pdf (PDF, 540.5 kB)

Cart

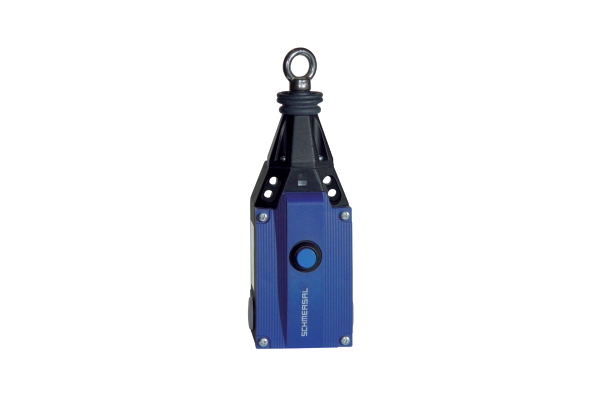

ZQ 900-13 Pull-wire emergency stop switch
