BS656-T22 Position switch

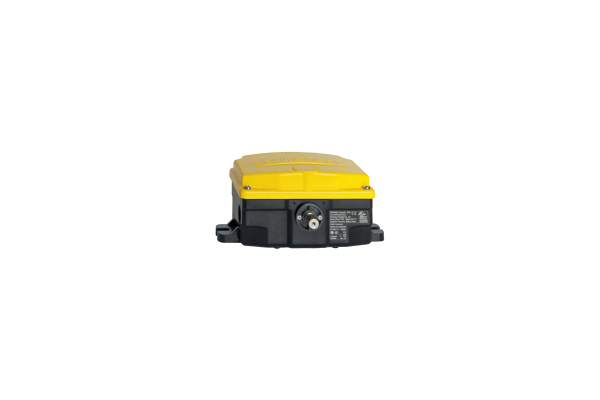

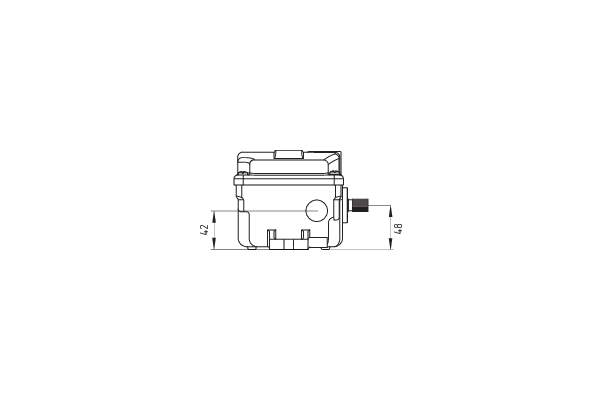

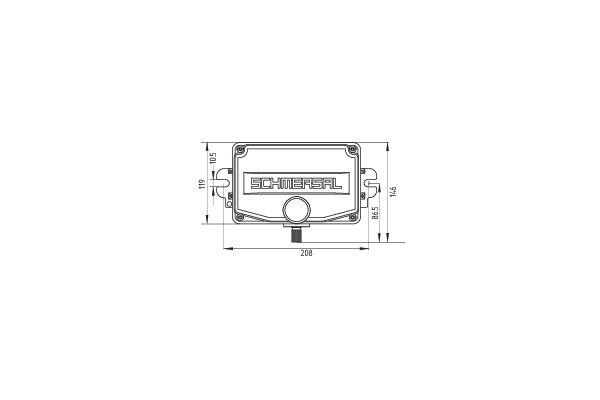

BS656-T22
Platform concept with different function units
Thermoplastic enclosure
Wide range of alternative actuators
Protection class IP66, IP67
Switching point setting
Symmetry thanks to toothed, centrally located shaft
Central connection terminal
  • SKU
    4030661533148
  • Manufacturer code
    153031630
  • Current, Thermal test current
    6 A
  • Current, Utilisation category AC-15
    3 A
  • Current, Utilisation category DC-13
    3 A
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Switching principle
    Slow action
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Material, contacts, electrical
    Silver
  • Housing material
    thermosetting resin
  • Standard, standards
    EN IEC 60947-5-1
    EN 620
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    CCC
    cULus
    TÜV
  • Type of electric connection
    Cage clamp
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661533148
  • SAP, product group
    HAWA: Electromechanical switchgear
  • SAP, gross weight
    2790.000 g
  • SAP, net weight
    2790.000 g
  • Temperature, Ambient temperature[generated product variant]
    -40 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -40 °C
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Voltage, Utilisation category DC-13
    24 VDC
  • Web Type
    Product range
  • Type of Execution, IP Protection class, General
    IP67
    IP66
  • Electrical data, Cable section, maximum
    2.5 mm², flexible
  • Voltage, rated insulation voltage
    300 V
  • Voltage, Utilisation category AC-15
    230 VAC
  • Electrical data, Cable section, minimum
    0.5 mm², flexible
  • Selection (Yes/No), Traceparts
    Yes
  • Type of Execution, Cable entry
    2 x M25 x 1.5
  • Material, housing cover
    thermosetting resin
  • Selection (Yes/No), CADENAS
    Yes
  • Auxiliary contacts
    2
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • Number, Safety contacts
    2
  • Type of Execution, Degree of pollution IEC/EN 60947-1
    3
  • Type of Execution, Protection class (Operating resource)
    2
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    II
  • Winkel, Positionierschritte für den Betätiger
    10 °
