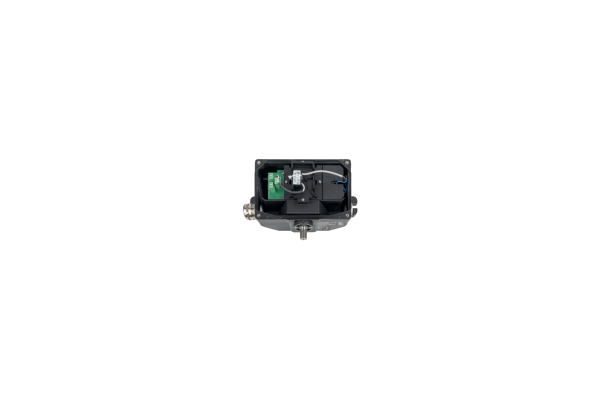

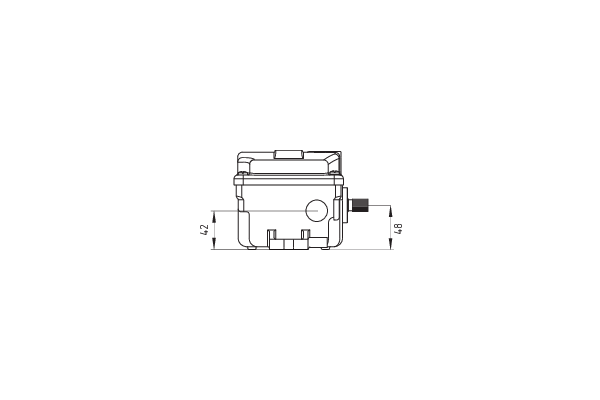

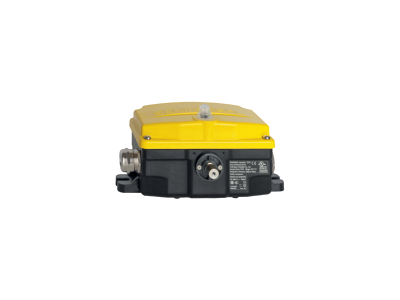

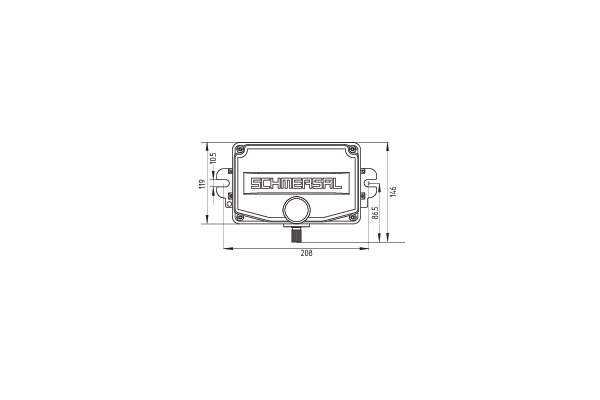

BS656-Z22-DN Position switch

BS656-Z22-DN
Platform concept with different function units
Thermoplastic enclosure
Wide range of alternative actuators
Protection class IP66, IP67
Switching point setting
Symmetry thanks to toothed, centrally located shaft
Central connection terminal
  • SKU
    4030661536316
  • Manufacturer code
    153031628
  • Current, Thermal test current
    6 A
  • Current, Utilisation category AC-15
    3 A
  • Current, Utilisation category DC-13
    3 A
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Material, contacts, electrical
    Silver
  • Housing material
    thermosetting resin
  • Standard, standards
    EN IEC 60947-5-1
    EN 620
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    CCC
    cULus
    TÜV
  • Type of electric connection
    Cage clamp
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661536316
  • SAP, product group
    HAWA: Electromechanical switchgear
  • SAP, gross weight
    2680.000 g
  • SAP, net weight
    2680.000 g
  • Temperature, Ambient temperature[generated product variant]
    -40 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -40 °C
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Voltage, rated operating voltage
    230 VAC
  • Voltage, type
    AC
    DC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Web Type
    Product range
  • Type of Execution, IP Protection class, General
    IP67
    IP66
  • Electrical data, Cable section, maximum
    2.5 mm², flexible
  • Voltage, rated insulation voltage
    300 V
  • Voltage, Utilisation category AC-15
    230 VAC
  • Electrical data, Cable section, minimum
    0.5 mm², flexible
  • Selection (Yes/No), Traceparts
    Yes
  • Type of Execution, Cable entry
    2 x M25 x 1.5
  • Material, housing cover
    thermosetting resin
  • Selection (Yes/No), CADENAS
    Yes
  • Auxiliary contacts
    2
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • Number, Safety contacts
    2
  • Type of Execution, Degree of pollution IEC/EN 60947-1
    3
  • Type of Execution, Protection class (Operating resource)
    2
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    II
  • Winkel, Positionierschritte für den Betätiger
    10 °
  • Current, Consumption, Dupline
    0.1 mA
  • Electrical data, Cable section, Dupline, maximum
    2.5 mm², flexible
    4 mm², rigid
  • Electrical data, Cable section, Dupline, minimum
    0.2 mm², rigid
    0.25 mm², flexible
  • Voltage, Operating voltage, Dupline
    8.2 VDC
  • Voltage, Rated impulse withstand voltage, Dupline
    0.8 kV
  • Voltage, rated insulation voltage, Dupline
    30 VDC
  • Voltage, rated operating voltage
    24 VDC
  • Voltage, rated operating voltage, Dupline
    8.2 VDC
  • Voltage, type, Dupline
    DC

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
