BS655-Z22-G230 Position switch

BS655-Z22-G230

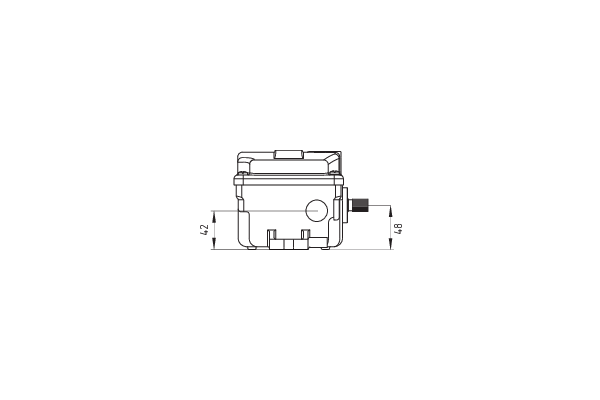

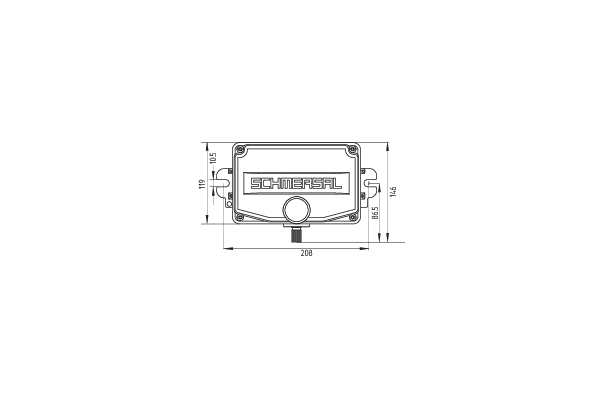

Platform concept with different function units
Metal enclosure
Wide range of alternative actuators
Protection class IP66, IP67
Switching point setting
Symmetry thanks to toothed, centrally located shaft
Central connection terminal
  • SKU
    4030661533070
  • Manufacturer code
    153031625
  • Current, Thermal test current
    6 A
  • Current, Utilisation category AC-15
    3 A
  • Current, Utilisation category DC-13
    3 A
  • Type of Execution, Mechanical life, minimum,
    1000000 Operations
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Material, contacts, electrical
    Silver
  • Housing material
    Grey cast iron, painted
  • Standard, standards
    EN IEC 60947-5-1
    EN 620
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    CCC
    cULus
    TÜV
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661533070
  • SAP, product group
    HAWA: Electromechanical switchgear
  • SAP, gross weight
    6085.000 g
  • SAP, net weight
    6085.000 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +60 °C
  • Temperature, ambient temperature, maximum
    60 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Voltage, Utilisation category DC-13
    24 VDC
  • Web Type
    Product range
  • Type of Execution, IP Protection class, General
    IP67
    IP66
  • Electrical data, Cable section, maximum
    2.5 mm², flexible
  • Voltage, rated insulation voltage
    300 V
  • Voltage, Utilisation category AC-15
    230 VAC
  • Electrical data, Cable section, minimum
    0.5 mm², flexible
  • Selection (Yes/No), Traceparts
    Yes
  • Type of Execution, Cable entry
    2 x M25 x 1.5
  • Material, housing cover
    Grey cast iron, painted
  • Selection (Yes/No), CADENAS
    Yes
  • Auxiliary contacts
    2
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • Number, Safety contacts
    2
  • Type of Execution, Degree of pollution IEC/EN 60947-1
    3
  • Type of Execution, Protection class (Operating resource)
    1
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    I
  • Winkel, Positionierschritte für den Betätiger
    10 °
  • Colour, indicator lamp
    Red
  • Note, LED switching conditions display
    Supply voltage UB: 230 VAC
  • Number, Signal lamps
    1
  • Selection (Yes/No), Indicator lamp
    Yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal

Product attachments

file-29927-2d4e1541d87d378d0eefa64a208f33b1.pdf (PDF, 960.32 kB)
