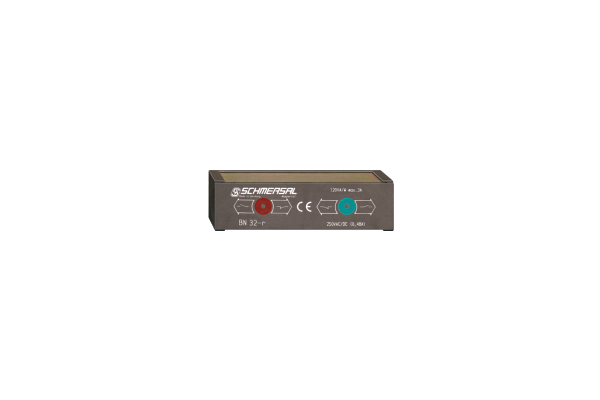

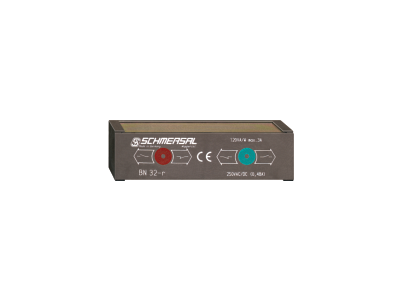

BN 32-R-1279 1,0M Magnetic Reed switch

BN 32-R-1279 1,0M
Flat plug-in connector 4.8 mm
Non-contact principle
1 Reed contakts
Long life
Actuating surface and direction of actuation marked by switch symbol
85 mm x 26 mm x 24 mm
Thermoplastic enclosure
Actuating distance up to 55 mm depending on actuating magnet and version
Spade connector
  • SKU
    4030661025322
  • Manufacturer code
    101080369
  • Current, Switching current, maximum
    3 A
  • Type of execution, Actuating element
    Magnet
  • Construction type housing
    rectangular
  • Type of Execution, IP Protection class, General
    IP67
  • Type of Execution, Mechanical life, minimum,
    1000000000 Operations
  • Type of Execution, Switching output, Digital output, electric
    Reed contacts
  • Height, Sensor
    26 mm
  • Length, Sensor
    24 mm
  • Width, Sensor
    85 mm
  • Material, active area
    Plastic
  • Housing material
    Glass-fibre, reinforced thermoplastic
  • Note, General
    The opening and closing functions depend on the direction of
  • PIM maintenance status
    Discharge "Online catalog"
  • Power, switching capacity, maximum
    120 VA
  • Power, switching capacity, maximum
    120 W
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661025322
  • SAP, product group
    Initial
  • SAP, gross weight
    128.426 g
  • SAP, net weight
    128.426 g
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +90 °C
  • Temperature, ambient temperature, maximum
    90 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Web Type
    Product range
  • Diameter, Wire cross-section, AWG
    18 AWG
  • Diameter, Wire cross-section,
    0.75 mm<sup>2</sup>
  • Cable length
    1 m
  • Material, cable mantle
    H03VV-F
  • Movement, actuating speed, maximum
    18 m/s
  • Notice, Switch distance Sn
    Actuating distance up to 55 mm depending on version and actu
  • Number, cable wires, indication with cable cross-section, electrical
    2
  • Recommendation, actuator
    BP 10 S
    2x BP 10 S
    BP 15 S
    BP 34 S
    BP 20 S
    BP 31 S
    BP 11 S
    2x BP 11 S
    BP 12 S
    BP 21 S
    2x BP 21 S
    BP 10 N
    2x BP 10 N
    BP 15 N
    2 x BP 15/2 N
    2x BP 15/2 S
    BP 34 N
    BP 20 N
    BP 31 N
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
  • Selection (Yes/No),
    Yes
  • Number, Snap-in contacts
    1
  • Selection (Yes/No), latching
    Yes
