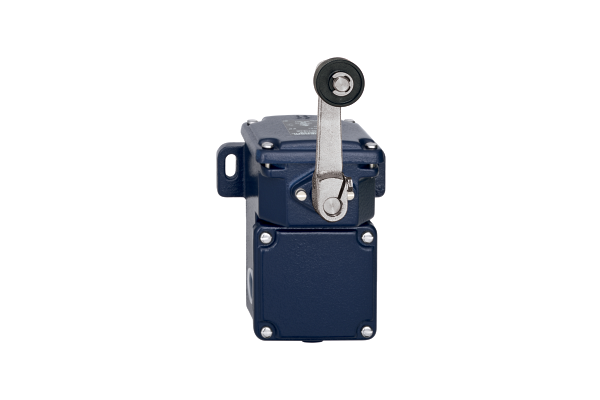

M. 250-22Z-1224 Belt alignment

M. 250-22Z-1224
2 Contacts
Metal enclosure
  • SKU
    4030661002415
  • Manufacturer code
    101083514
  • Current, Thermal test current
    16 A
  • Type of Execution, IP Protection class, General
    IP65
    IP66
    IP67
  • Type of Execution, Mechanical life, minimum,
    10000000 Operations
  • Switching principle
    Snap action
  • Distance, Contact opening
    2 x 2.5 mm
  • Electrical data, Cable section, maximum
    2.5 mm²
  • Electrical data, Max. fuse rating
    16 A gG D-fuse
  • Electrical data, Utilisation category
    AC-15
  • Material, contacts, electrical
    Gold-plated silver (AgNi 15 + Au 0,3µm)
  • Housing material
    Grey cast iron, galvanised
  • Material, enclosure coating
    painted
  • Standard, standards
    EN IEC 60947-5-1
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Number, NC contacts
    2
  • Number, NO contacts
    2
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    CCC
    cULus
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661002415
  • SAP, product group
    Initial
  • SAP, gross weight
    4405.000 g
  • SAP, net weight
    4405.000 g
  • Temperature, Ambient temperature[generated product variant]
    -20 ... +60 °C
  • Temperature, ambient temperature, maximum
    60 °C
  • Temperature, ambient temperature, minimum
    -20 °C
  • Time, Switching frequency
    3000 /h
  • Voltage, Rated impulse withstand voltage
    6 kV
  • Current, Required rated short-circuit current to EN 60947-5-1
    1000 A
  • Current, Utilisation category AC-15, main contacts
    4 A
  • Type of Execution, Cable entry
    2 x M25 x 1.5
  • Type of Execution, Terminals, mechanical
    Screw connection
  • Energy, Impact energy, maximum
    7 J
  • Movement, actuating speed, maximum
    1 m/s
  • Temperature, material, resistance, maximum, short-term
    90 °C
  • Time, Bounce duration, maximum
    5 ms
  • Time, Switchover time, maximum
    35 ms
  • Voltage, Utilisation category AC-15, Main contacts
    400 VAC

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
