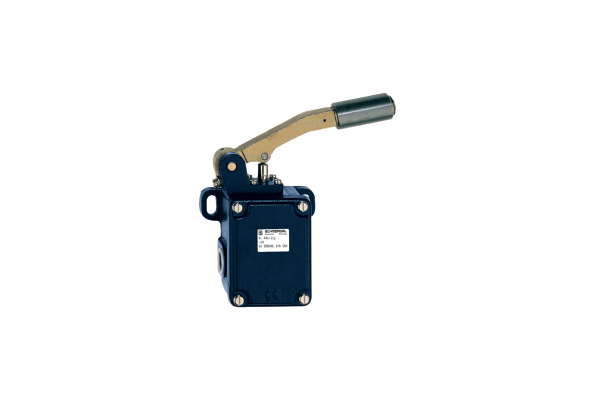

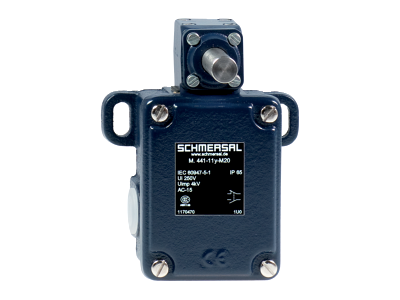

2 cable entries
Metal enclosure
2 Contacts
106 mm x 181 mm x 63 mm
Suitable for heavy duty

SKU

4030661019949
Manufacturer code

101056537
CAD, traceparts, product ID

33-22052019-077787
Current, Thermal test current

16 A
Current, Utilisation category AC-15

4 A
Type of Execution, IP Protection class, General

IP65
Type of Execution, Mechanical life, minimum,

10000000 Operations
Switching principle

Slow action
Diameter, Wire cross-section, AWG

13 AWG
Distance, Contact opening

2 x 6 mm
Height, Sensor

181 mm
Length, Sensor

63 mm
Width, Sensor

106 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Cable section, minimum

1.5 mm²
Electrical data, Max. fuse rating

16 A gG D-fuse
Electrical data, Utilisation category

AC-15
Material, contacts, electrical

Silver
Housing material

Grey cast iron, galvanised
Material, enclosure coating

painted
Standard, standards

EN IEC 60947-5-1
Note, Design, Switching element

with double break
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Number, NC contacts

1
Number, NO contacts

1
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

CCC
Type of switch function

NO contact, NC contact
Type of electric connection

Screw terminals M20 x 1.5
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661019949
SAP, product group

Initial
SAP, gross weight

1855.000 g
SAP, net weight

1855.000 g
Temperature, Ambient temperature[generated product variant]

-30 ... +90 °C
Temperature, ambient temperature, maximum

90 °C
Temperature, ambient temperature, minimum

-30 °C
Time, Switching frequency

3000 /h
Voltage, Rated impulse withstand voltage

6 kV
Voltage, rated insulation voltage

400 V
Voltage, Utilisation category AC-15

400 VAC
