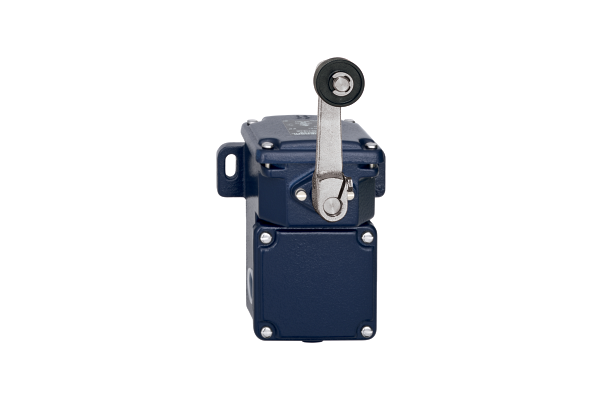

4 Contacts
Metal enclosure

SKU

4030661031200
Manufacturer code

101058179
Current, Thermal test current

16 A
Type of Execution, Terminals, mechanical

Screw connection
Type of Execution, Mechanical life, minimum,

10000000 Operations
Switching principle

Slow action
Electrical data, Max. fuse rating

16 A gG D-fuse
Electrical data, Utilisation category

AC-15
Material, contacts, electrical

Gold-plated silver (AgNi 15 + Au 0,3µm)
Housing material

Grey cast iron, galvanised
Standard, standards

EN IEC 60947-5-1
Number, NC contacts

4
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

CCC
cULus
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661031200
SAP, product group

Initial
SAP, gross weight

4383.488 g
SAP, net weight

4383.488 g
Temperature, Ambient temperature[generated product variant]

-20 ... +60 °C
Temperature, ambient temperature, maximum

60 °C
Temperature, ambient temperature, minimum

-20 °C
Time, Bounce duration, maximum

5 ms
Time, Switching frequency

3000 /h
Voltage, Rated impulse withstand voltage

6 kV
Voltage, Utilisation category AC-15, Main contacts

400 VAC
Type of Execution, IP Protection class, General

IP65
IP67
IP66
Electrical data, Cable section, maximum

2.5 mm²
Material, enclosure coating

painted
Movement, actuating speed, maximum

1 m/s
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Time, Switchover time, maximum

35 ms
Current, Required rated short-circuit current to EN 60947-5-1

1000 A
Current, Utilisation category AC-15, main contacts

4 A
Type of Execution, Cable entry

2 x M25 x 1.5
Energy, Impact energy, maximum

7 J
Temperature, material, resistance, maximum, short-term

90 °C
