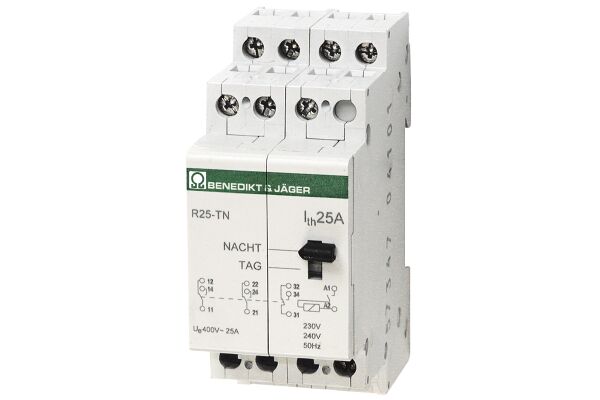

R25-TN 230 Day-Night-Changeover contactor 25A 4 pole, Coil 230VAC 50Hz

R25-TN 230

Day-Night-Changeover contactor 25A, Coil 230-240V 50Hz 4 pole for separated tariff counters

  • SKU
    9005738818874
  • Manufacturer code
    R25-TN 230
  • Degree of protection (IP)
    IP40
  • Rated operating voltage
    440 - 440 V
  • Rated operation current
    25 A
  • Utility category
    1
  • Rated excitation voltage
    220 - 240 V
  • Voltage type (operating voltage)
    AC
  • Voltage type (excitation voltage)
    AC
  • Number, NO contacts
    4
  • Number, NC contacts
    0
  • Max. incandescent lamp load
    3000 W
  • Max. load fluorescent lamp
    2576 VA
  • Max. load fluorescent lamp (Duo circuit)
    2378.2 VA
  • Max. load fluorescent lamp (parallel compensated)
    2208 VA
  • Slider for hand switch
    false
  • Number of modular spacings
    2
  • Built-in depth
    60 mm
  • Additional equipment possible
    true
