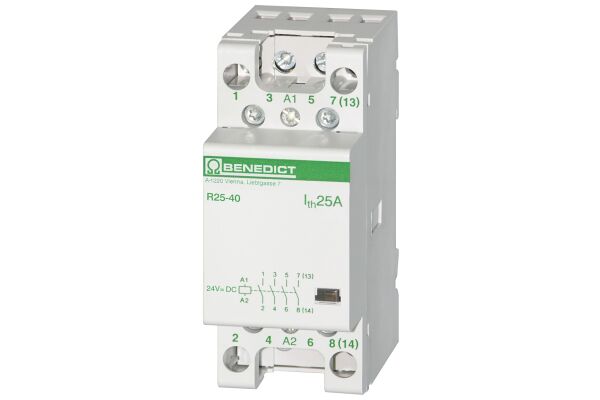

R25-40 230 Modular contactor LOW NOISE 25A 4NO, Coil 230VAC 50Hz

R25-40 230

Installation contactor for distribution boards LOW NOISE 25A 4-pole 4NO, Coil 220-240V 50Hz 230-264V 60Hz, maximum switchable lamp loads!

  • SKU
    9005738652027
  • Manufacturer code
    R25-40 230
  • Degree of protection (IP)
    IP40
  • Rated operating voltage
    440 - 440 V
  • Rated operation current
    25 A
  • Utility category
    1
  • Rated excitation voltage
    220 - 240 V
  • Voltage type (operating voltage)
    AC
  • Voltage type (excitation voltage)
    AC
  • Number, NO contacts
    4
  • Number, NC contacts
    0
  • Max. incandescent lamp load
    3000 W
  • Max. load fluorescent lamp
    1190 VA
  • Max. load fluorescent lamp (Duo circuit)
    2552 VA
  • Max. load fluorescent lamp (parallel compensated)
    1360 VA
  • Slider for hand switch
    false
  • Number of modular spacings
    2
  • Built-in depth
    60 mm
  • Additional equipment possible
    true
