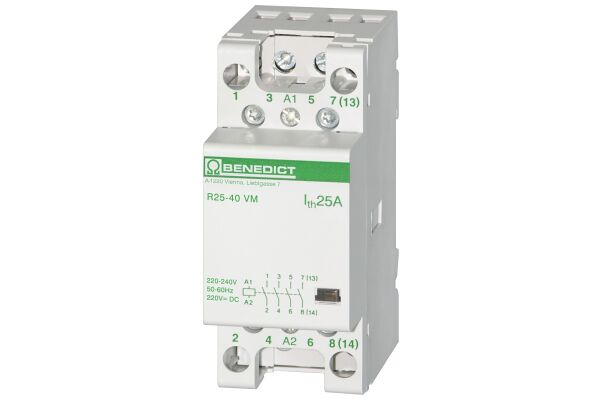

R25-40 230VM Modular contactor HUM FREE 25A 4NO Coil 230VAC/220=VDC

R25-40 230VM

Installation contactor for distribution boards HUM FREE 25A 4-pole 4NO, Coil 220-240V 50/60Hz 220V= DC, maximum switchable lamp loads!

  • SKU
    9005738195005
  • Manufacturer code
    R25-40 230VM
  • Degree of protection (IP)
    IP40
  • Rated operating voltage
    440 - 440 V
  • Rated operation current
    25 A
  • Utility category
    1
  • Rated excitation voltage
    220 - 240 V
  • Voltage type (operating voltage)
    AC/DC
  • Voltage type (excitation voltage)
    AC/DC
  • Number, NO contacts
    4
  • Number, NC contacts
    0
  • Max. incandescent lamp load
    3000 W
  • Max. load fluorescent lamp
    1190 VA
  • Max. load fluorescent lamp (Duo circuit)
    2552 VA
  • Max. load fluorescent lamp (parallel compensated)
    1360 VA
  • Slider for hand switch
    false
  • Number of modular spacings
    2
  • Built-in depth
    60 mm
  • Additional equipment possible
    true
