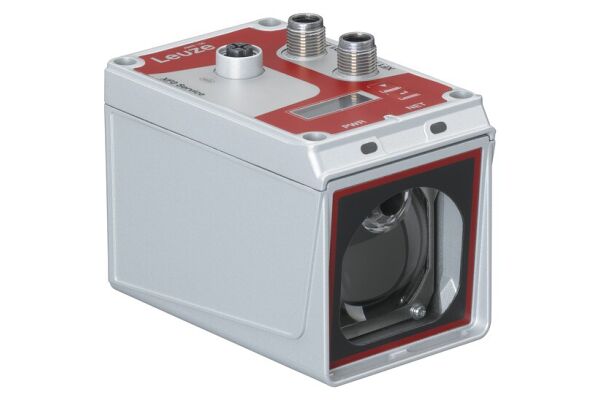

Compact optical positioning sensor with laser light source and versatile connectivity.

SKU

50144694
Manufacturer code

50144694
Scanning principle

Other
Type of analogy output

Other
Type of electric connection

Connector M12
Type of switching output

Other
Type of switch function

Other
Operation agent-safety class

Safety class 3
Supply voltage

18 - 30 V
Width sensor

70 mm
Height of sensor

139 mm
Length of sensor

118 mm
Setting procedure

Manual adjustment
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Laser protection class

Class 2
Type of light

Laser diode, red light
Measuring principle for optical distance measurement

Other
Degree of protection (IP)

IP65
Voltage type

DC
DC
DC
DC
Ambient temperature

-30 - 60 °C
Pre failure notice

false
Material of optical surface

Glass
Housing material

Other
Metal
Material of cable sheath

Other
With time function

false
Interface

SSI
Geometrical resolution

10 mm
Signalling interval

0.8 Hz
Switching frequency

0.05 Hz
Most suitable applications

Precision measurement tasks High-speed positioning systems
Supply voltage

18 ... 30
Measurement range (mm)

100 ... 120000
Interface

SSI
Ambient temperature

-30 ... 60
Display

LED, LC Display

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Leuze
