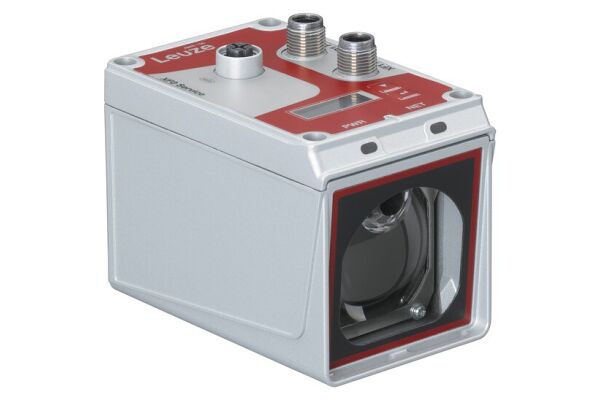

AMS 107i 40

This optical positioning sensor uses a laser light source and offers precise measurement capabilities.

SKU

50144691
Manufacturer code

50144691
Scanning principle

Other
Type of analogy output

Other
Type of electric connection

Connector M12
Type of switching output

Other
Type of switch function

Other
Operation agent-safety class

Safety class 3
Supply voltage

18 - 30 V
Width sensor

70 mm
Height of sensor

139 mm
Length of sensor

118 mm
Setting procedure

Manual adjustment
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Laser protection class

Class 2
Type of light

Laser diode, red light
Measuring principle for optical distance measurement

Other
Degree of protection (IP)

IP65
Voltage type

DC
DC
DC
DC
Ambient temperature

-5 - 60 °C
Pre failure notice

false
Material of optical surface

Glass
Housing material

Other
Metal
Material of cable sheath

Other
With time function

false
Interface

SSI
Geometrical resolution

10 mm
Signalling interval

0.8 Hz
Switching frequency

0.05 Hz
Supply voltage

18 ... 30
Measurement range (mm)

100 ... 40000
Interface

SSI
Ambient temperature

-5 ... 60
Display

LED, LC Display

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Leuze
Need our help?

or call us at

An inquiry about AMS 107i 40

Please enter your inquiry below and we'll get back to you as soon as possible.

Company

Your name

E-mail

Phone number

Message

Product attachments

DS_AMS-107i-40_eng_50144691 (LINK)
