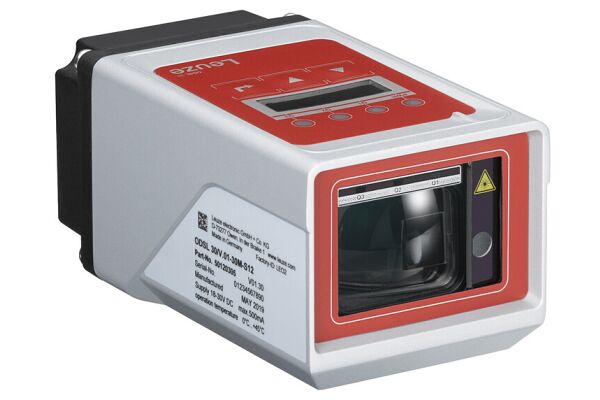

ODSL 30/D232.01-30M-S12 Optical distance sensor

ODSL 30/D232.01-30M-S12
A compact optical distance sensor with a laser light source and digital connectivity.
  • SKU
    50147335
  • Manufacturer code
    50147335
  • Scanning principle
    Push button
  • Type of analogy output
    Other
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Anticoincidence
  • Operation agent-safety class
    Safety class 2
  • Supply voltage
    10 - 30 V
  • Width sensor
    79 mm
  • Height of sensor
    69 mm
  • Length of sensor
    150 mm
  • Setting procedure
    Manual adjustment
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Construction type housing
    Cuboid
  • Laser protection class
    Class 2
  • Type of light
    Laser diode, red light
  • Measuring principle for optical distance measurement
    Other
  • Degree of protection (IP)
    IP67
  • Voltage type
    DC
    DC
    DC
    DC
  • Ambient temperature
    0 - 45 °C
  • Pre failure notice
    false
  • Material of optical surface
    Glass
  • Housing material
    Other
  • Material of cable sheath
    Other
  • With time function
    false
  • Interface
    RS-232
  • Most suitable applications
    Distance measurement in industrial settings Object scanning and detection
  • Supply voltage
    10 ... 30
  • Operational controls
    Membrane keyboard
    LC Display
  • Scanning system
    Against object
  • Measurement range (mm)
    200 ... 65000
  • Interface
    RS 232

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Leuze

Product attachments

DS_ODSL-30-D232-01-30M-S12_eng_50147335 (LINK)
