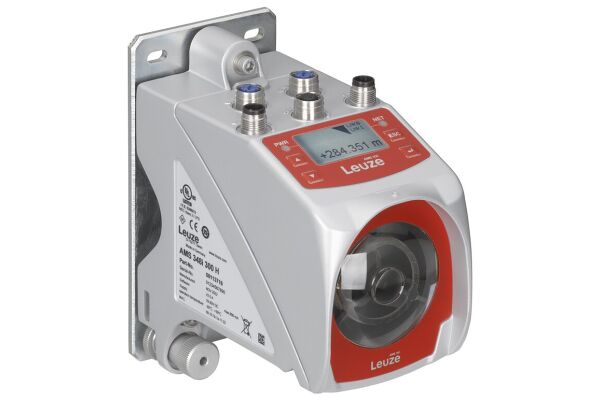

This optical distance sensor features a laser light source and comes pre-mounted with a mounting plate. It offers precise measurements with an absolute accuracy of 2 mm and supports fast traverse rates. The sensor is equipped with a display and is housed in a durable metal casing, suitable for various environmental conditions.

SKU

2110-50113666
Manufacturer code

50113666
Scanning principle

Other
Type of analogy output

Other
Type of electric connection

Connector M12
Type of switching output

Other
Type of switch function

Other
Operation agent-safety class

Safety class 3
Supply voltage

18 - 30 V
Width sensor

84 mm
Height of sensor

166.5 mm
Length of sensor

159 mm
Setting procedure

Manual adjustment
Explosion safety category for gas

None
Explosion safety category for dust

None
Construction type housing

Cuboid
Laser protection class

Class 2
Type of light

Laser diode, red light
Measuring principle for optical distance measurement

Other
Degree of protection (IP)

IP65
Voltage type

DC
DC
DC
DC
Ambient temperature

-30 - 50 °C
Pre failure notice

false
Material of optical surface

Glass
Housing material

Other
Metal
Material of cable sheath

Other
With time function

false
Interface

RS-232
Geometrical resolution

10 mm
Most suitable applications

Industrial automation Quality control Robotics
Supply voltage

18 ... 30
Measurement range (mm)

200 ... 120000
Interface

RS 232
RS 422
Ambient temperature

-30 ... 50
Display

LED, LC Display
Pre-mounted

Mounting plate

Manufacturer Leuze
