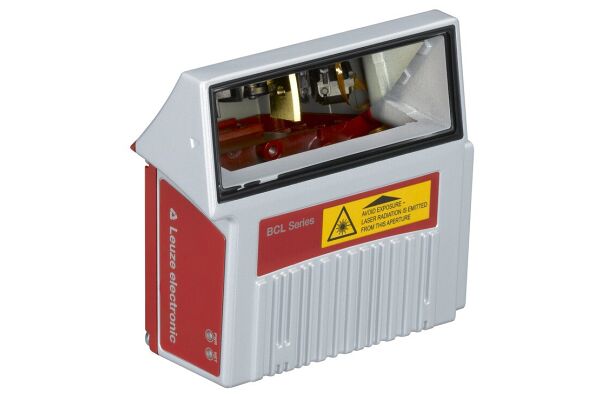

BCL 358i R1 J 100 Stationary bar code reader

BCL 358i R1 J 100
This stationary barcode reader features code fragment technology and various modes for optimized performance. It offers a typical scanning rate of 1,000 scans per second and a reading distance between 100 to 600 mm. The device employs a raster scanner with a lateral deflecting mirror for reading. It is equipped with an LED display and operates with a supply voltage of 18 to 30 V DC. Connection interfaces include EtherNet IP and USB, with a plug connector for ease of use. Suitable for operation in ambient temperatures ranging from 0 to 40 °C, it is c UL US certified.
  • SKU
    2110-50123503
  • Manufacturer code
    50123503
  • Type of electric connection
    Plug-in connection
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    103 mm
  • Height of sensor
    44 mm
  • Length of sensor
    96 mm
  • With configurable message output
    true
  • Laser protection class
    Class 1
  • Ambient temperature
    0 - 40 °C
  • Rated control supply voltage DC
    18 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    655 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Supplyoltage (V)
    18 ... 30
  • Ambient temperature
    0 ... 40
  • Type of interface
    EtherNet IP
    USB 2.0
  • Reading method
    Raster scanner with deflecting mirror
  • Light beam exit
    Lateral with deflecting mirror
  • Display
    LED
  • Manufacturer Leuze

Product attachments

DS_BCL-358i-R1-J-100_eng_50123503 (LINK)
