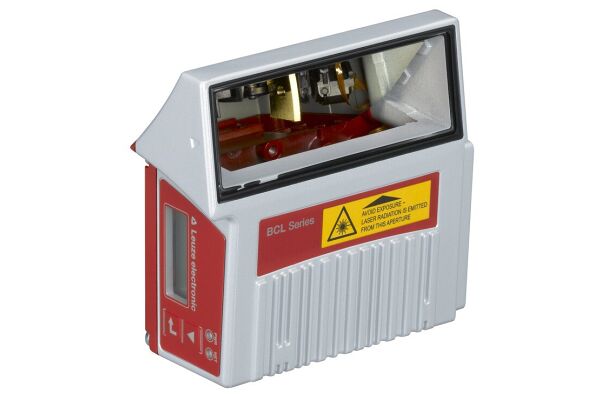

BCL 348i SN 100 D Stationary bar code reader

BCL 348i SN 100 D
This stationary barcode reader features advanced functions like AutoConfig, Alignment mode, and LED indicators. It offers a typical scanning rate of 1,000 scans per second and a reading distance ranging from 20 to 130 mm. The device uses a line scanner with a deflecting mirror and has a lateral light beam exit. It is powered by a supply voltage of 18 to 30 V DC and supports PROFINET and USB 2.0 interfaces. The reader is equipped with a monochromatic graphic LED display and operational buttons.
  • SKU
    2110-50116458
  • Manufacturer code
    50116458
  • Type of electric connection
    Plug-in connection
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    103 mm
  • Height of sensor
    44 mm
  • Length of sensor
    96 mm
  • With configurable message output
    true
  • Laser protection class
    Class 1
  • Ambient temperature
    0 - 40 °C
  • Rated control supply voltage DC
    18 - 30 V
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    655 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Supplyoltage (V)
    18 ... 30
  • Ambient temperature
    0 ... 40
  • Type of interface
    PROFINET
    USB 2.0
  • Reading method
    Line scanner with deflecting mirror
  • Light beam exit
    Lateral with deflecting mirror
  • Display
    LED, Monochromatic
  • Operational controls
    Button(s)
  • Manufacturer Leuze

Product attachments

DS_BCL-348i-SN-100-D_eng_50116458 (LINK)
