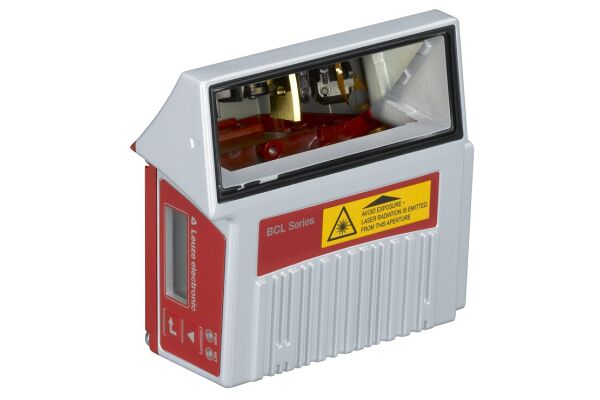

This stationary barcode reader features advanced functions like AutoReflAct, alignment mode, and AutoConfig. It offers a scanning rate of 1,000 scans per second, with a reading distance ranging from 70 to 670 mm. The device uses a line scanner with a deflecting mirror, and has a lateral light beam exit. Equipped with a monochromatic graphic display and operational buttons, it supports EtherCAT and USB 2.0 interfaces.

SKU

2110-50141847
Manufacturer code

50141847
Type of electric connection

Plug-in connection
Operation agent-safety class

Safety class 3
Width sensor

103 mm
Height of sensor

44 mm
Length of sensor

96 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

0 - 40 °C
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

655 nm
With restart blockage

false
Suitable for safety functions

false
Supplyoltage (V)

18 ... 30
Ambient temperature

0 ... 40
Type of interface

EtherCAT
USB 2.0
Reading method

Line scanner with deflecting mirror
Light beam exit

Lateral with deflecting mirror
Display

LED, Monochromatic
Most suitable applications

Barcode scanning in industrial and retail environments.
Operational controls

Button(s)

Manufacturer Leuze
