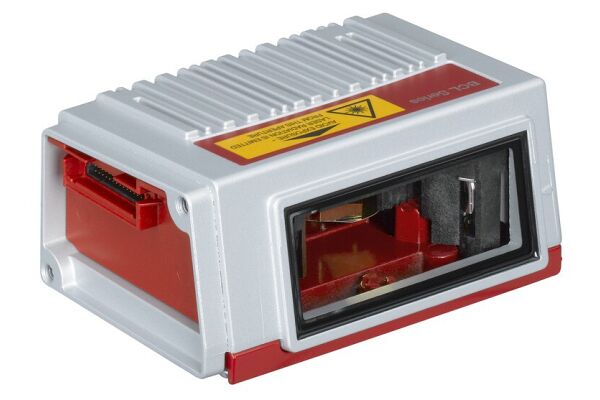

This stationary bar code reader features functions like LED indicator, alignment mode, AutoConfig, AutoControl, AutoReflAct, code fragment technology, and reference code comparison. It offers a scanning rate of 1,000 scans per second and a reading distance between 100 to 700 mm. The device uses a line scanner method with front light beam exit and is equipped with an LED monochromatic graphic display.

SKU

2110-50141829
Manufacturer code

50141829
Type of electric connection

Plug-in connection
Operation agent-safety class

Safety class 3
Width sensor

95 mm
Height of sensor

44 mm
Length of sensor

68 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

0 - 40 °C
Rated control supply voltage DC

18 - 30 V
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

655 nm
With restart blockage

false
Suitable for safety functions

false
Supplyoltage (V)

18 ... 30
Ambient temperature

0 ... 40
Type of interface

EtherCAT
USB 2.0
Reading method

Line scanner
Light beam exit

Front
Display

LED, Monochromatic
Most suitable applications

Industrial automation Warehousing and logistics Retail inventory management
Operational controls

Button(s)

Manufacturer Leuze
