MD 7XXP-11-82IO4-12

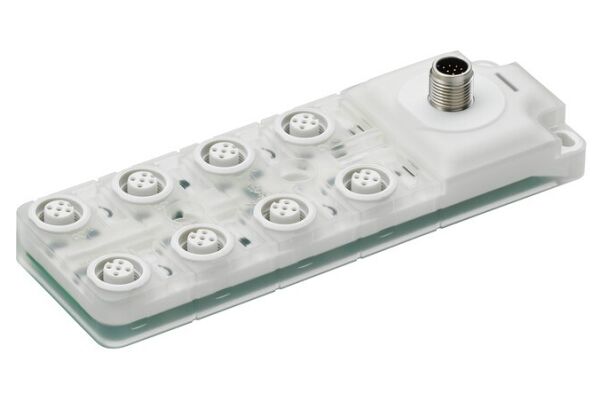

Distribution box with 8 ports and LED display, featuring M12 connectors and a durable plastic housing.

SKU

2110-50130611
Manufacturer code

50130611
Material of contact surface

Gold
Degree of protection (IP)

IP67
Width

50 mm
Height

31 mm
Depth

150 mm
Connection 1

M12, 12 -pin
Type of connector for trunk line

1/2 inch
Cable length configurable

false
Number of sensor-/actuator-slots

8
Number of poles sensor/actuator slots

4
Max. current carrying capacity per I/O signal

1.5 A
Max. current carrying capacity per socket

1.5 A
Thread sleeves sensor/actuator slots

M12
With LED indication

false
With potential separation

false
Connection for NPN-sensors

true
Fix cable version suitable for cable guide chain

false
Housing material

Plastic
Plastic
Plastic
Plastic
Housing colour

Other
Operating temperature

-20 - 60 °C
Explosion safety category for gas

None
Explosion safety category for dust

None
Coding

C1: A-coded
Housing color

Translucent, white
Display

LED
Connector type

male

Manufacturer Leuze
