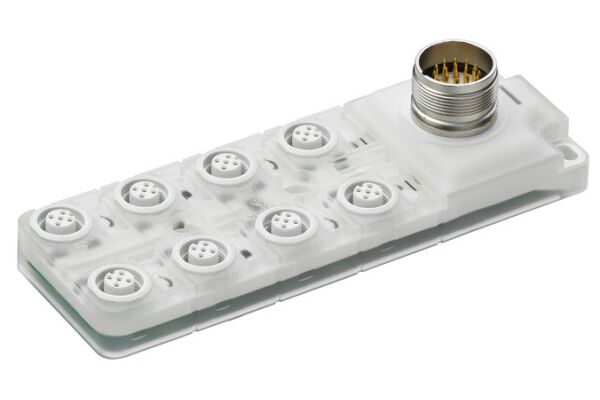

A distribution box featuring an M23 master connection with 12-pin, A-coded, male connector, and eight M12 distribution ports with 4-pin, female connectors.

SKU

2110-50130607
Manufacturer code

50130607
Material of contact surface

Gold
Degree of protection (IP)

IP67
Width

50 mm
Height

36.5 mm
Depth

150 mm
Connection 1

M23, 12 -pin
Type of connector for trunk line

7/8 inch
Cable length configurable

false
Number of sensor-/actuator-slots

8
Number of poles sensor/actuator slots

4
Max. current carrying capacity per I/O signal

4 A
Max. current carrying capacity per socket

4 A
Thread sleeves sensor/actuator slots

M12
With LED indication

false
With potential separation

false
Connection for NPN-sensors

true
Fix cable version suitable for cable guide chain

false
Housing material

Plastic
Plastic
Plastic
Plastic
Housing colour

Other
Operating temperature

-20 - 70 °C
Explosion safety category for gas

None
Explosion safety category for dust

None
Coding

C1: A-coded
Housing color

Translucent, white
Display

LED
Connector type

male

Manufacturer Leuze
