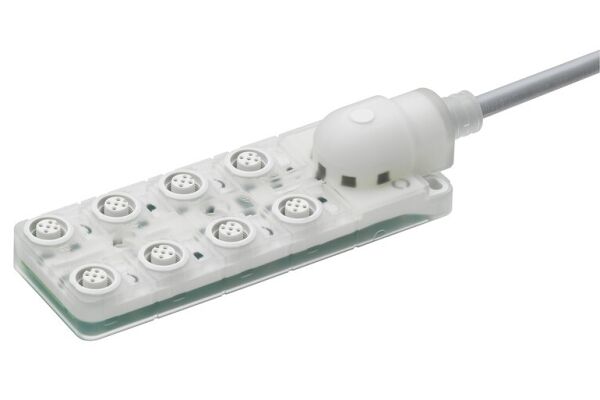

MD 7XXP-11-82IO4-K050 Distribution box

MD 7XXP-11-82IO4-K050
A distribution box with a master connection cable and multiple ports for efficient connectivity.
  • SKU
    2110-50130601
  • Manufacturer code
    50130601
  • Material of contact surface
    Gold
  • Degree of protection (IP)
    IP67
  • Width
    50 mm
  • Height
    32 mm
  • Depth
    90 mm
  • Cable length configurable
    false
  • Number of sensor-/actuator-slots
    8
  • Number of poles sensor/actuator slots
    4
  • Max. current carrying capacity per I/O signal
    4 A
  • Max. current carrying capacity per socket
    4 A
  • Thread sleeves sensor/actuator slots
    M12
  • With LED indication
    false
  • With potential separation
    false
  • Connection for NPN-sensors
    true
  • Fix cable version suitable for cable guide chain
    true
  • Housing material
    Plastic
    Plastic
    Plastic
    Plastic
  • Housing colour
    Other
  • Operating temperature
    -5 - 70 °C
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Cable outer diameter for cable gland
    8.1 - 8.1 mm
  • Material insulation body
    Other
  • Housing color
    Translucent, white
  • Display
    LED
  • Cable length (m)
    5
  • Manufacturer Leuze

Product attachments

DS_MD-7XXP-11-82IO4-K050_eng_50130601 (LINK)
