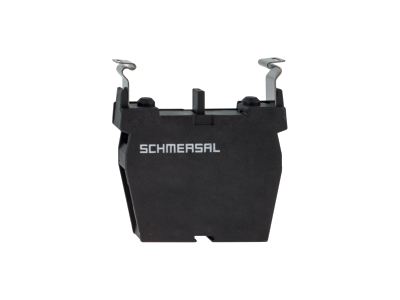

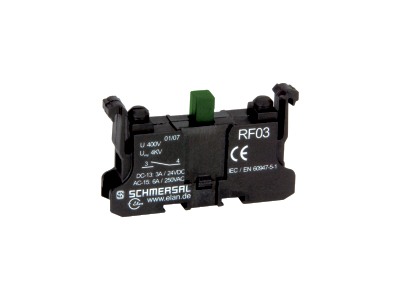

EX-RF03 EX command push button

EX-RF03
Screw connection
3-4 (Contact labelling)
  • SKU
    4030661460314
  • Manufacturer code
    101195132
  • Explosion protection parameters, category
    2G
    2D
  • Explosion protection parameters, designation
    D II 2G Ex ib IIC Gb
    D II 2D Ex ib IIIC Db
  • Explosion protection, regulations
    EN IEC 60079-0
    EN 60079-31
    EN 60079-14
    EN 60079-11
  • Explosion protection parameters, zones
    22
    2
    1
    21
  • Material, identification label
    Plastic, Polyamide PA
  • Standard, standards
    EN IEC 60947-5-1
    EN ISO 13849-1
    EN IEC 60947-5-5
    EN IEC 60204-1
    EN IEC 60947-5-3
    EN IEC 62061
    EN IEC 60947-1
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    IEC Ex
    TÜV
    cURus
  • Safety parameters, Mission time
    20 Year(s)
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661460314
  • SAP, product group
    Initial
  • SAP, gross weight
    9.000 g
  • SAP, net weight
    9.000 g
  • Temperature, ambient temperature, maximum
    55 °C
  • Type of application, Installation instructions
    pluggable
  • Current, Thermal test current
    10 A
  • Current, Utilisation category AC-15
    6 A
  • Current, Utilisation category DC-13
    3 A
  • Type of Execution, Degree of pollution IEC/EN 60947-1
    3
  • Type of Execution, IP Protection class, Switch rooms
    IP40
  • Type of Execution, IP Protection class, clips or terminals
    IP20
  • Type of Execution, Mechanical life, minimum,
    10000000 Operations
  • Design, Position, Mounting flange
    3
    1
    2
  • Switching principle
    Slow action
  • Height, General
    25.5 mm
  • Length, General
    44 mm
  • Path, positive break travel
    2 mm
  • Width, General
    9 mm
  • Electrical data, Cable section, maximum
    2 x 2.5 mm²
  • Electrical data, Cable section, minimum
    2 x 1.0 mm², flexible
  • Electrical data, Max. fuse rating
    6 A gG D-fuse slow blow
  • Electrical data, Suitable for low-voltages
    ≥ 5 V / ≥ 1 mA
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Material, contacts, electrical
    Silver
  • Housing material
    Plastic, glass-fibre reinforced thermoplastic, self-extingui
  • Type of electric connection
    Screw terminals M20 x 1.5
  • Review, Resistance to vibrations to EN 60068-2-6
    5 g
  • Review, restistance to shock
    30 g / 18 ms
  • Time, Switching frequency
    1200 /h
  • Tightening torque, tightening torque, screw
    1 Nm
  • Tightening torque, torque, clips
    1 Nm
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Voltage, rated insulation voltage
    400 V
  • Voltage, Utilisation category AC-15
    250 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Distance, Contact opening
    3 mm
  • Electrical data, Contact labelling
    3-4
  • Number, NO contacts
    1
  • Type of switch function
    Normally open contact (NO)
