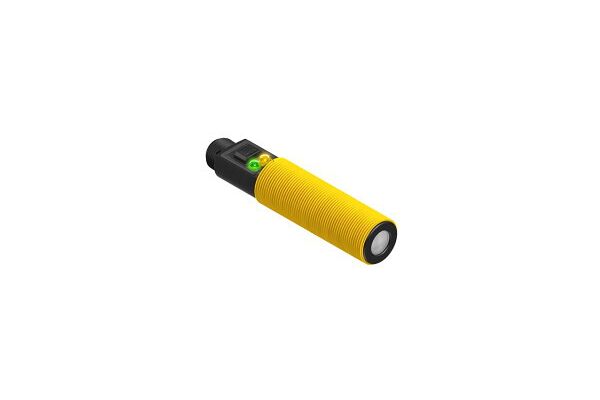

S18UBAQ Ultrasonic Sensor, diffuse mode sensor, With Switching Output

S18UBAQ

Ultrasonic Sensor, diffuse mode sensor, With Switching Output, Operating voltage 10…30 VDC, Max. range 300 mm, Compact design, Connection via male M12 x 1, Temperature compensation, Very small blind zone, Switching range adjustable via teach-in, Adjustable to retroreflective mode, Blind zone: 3 cm, Range: 30 cm

  • SKU
    0662488027124
  • Manufacturer code
    3002712

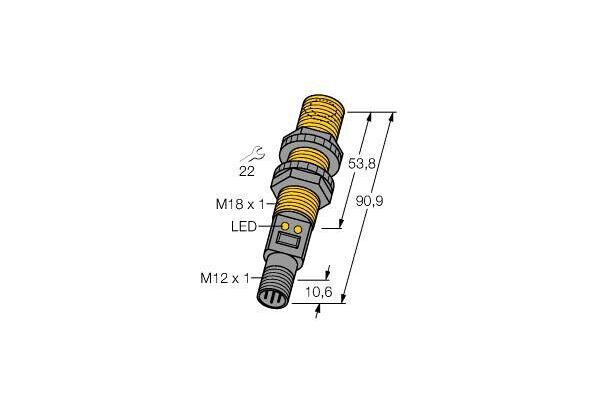

  • Length of sensor
    90.9 mm
  • Ambient temperature
    -20 - 60 °C
  • Supply voltage
    10 - 30 V
  • Switching frequency
    100 Hz
  • Diameter sensor
    18 mm
  • Measuring range length
    30 - 300 mm
  • No-load current
    100 mA
  • Type of electric connection
    Plug-in connection
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Material active area of sensor
    Plastic
  • Housing material
    Plastic
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Connector gender
    male

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-54356-cc33f18c71e6ba9ad89987a0a5f5e150.pdf (PDF, 393.93 kB)
