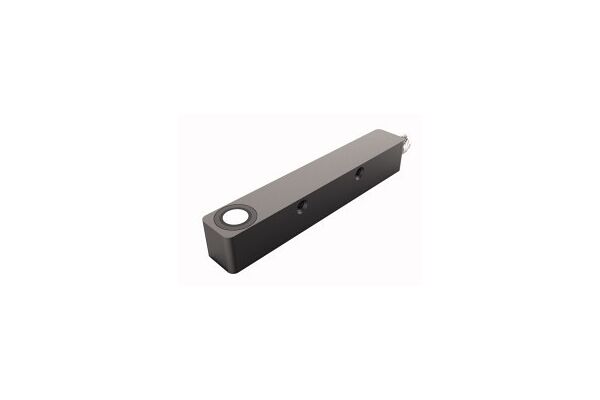

RU40U-Q12S-UN8X-V1141 Ultrasonic Sensor, Diffuse Mode Sensor

RU40U-Q12S-UN8X-V1141

Ultrasonic Sensor, Diffuse Mode Sensor, Operating voltage 18…30 VDC, Max. range 400 mm, Smooth sonic transducer face, Rectangular housing Q12S, potted, Lateral light emission, Connection via M8 × 1 male connector, Teach range adjustable via connection cable or via IO-Link, Blind zone: 4 cm, Range: 40 cm, Resolution: 1 mm, Aperture angle of sonic cone: ±9 °, Switching output, NPN, NO/NC programmable, IO-Link

  • SKU
    4047101506617
  • Manufacturer code
    100005611

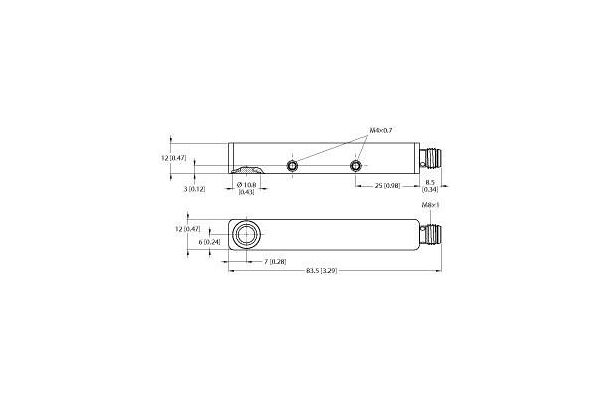

  • Width sensor
    12 mm
  • Height of sensor
    12 mm
  • Length of sensor
    82 mm
  • Ambient temperature
    -25 - 70 °C
  • Supply voltage
    18 - 30 V
  • Switching frequency
    10 Hz
  • Measuring range length
    40 - 400 mm
  • No-load current
    40 mA
  • Relative repeat accuracy
    0.125 %
  • Relative linearity deflection
    0.8 %
  • Type of electric connection
    Plug-in connection
  • Type of switching output
    NPN
  • Type of switch function
    Programmable/configurable
  • Setting procedure
    Other
  • Construction type housing
    Cuboid
  • Standard for interfaces
    Other
  • Material active area of sensor
    Plastic
  • Housing material
    Other
  • Connector gender
    male
  • NO/NC
    NO/NC contacts
  • Switching output
    NPN
  • Network protocol
    IO-link
  • Manufacturer Turck

Product attachments

file-53402-bce96cefcb7281541ff22f9d88490398.pdf (PDF, 1.84 MB)
