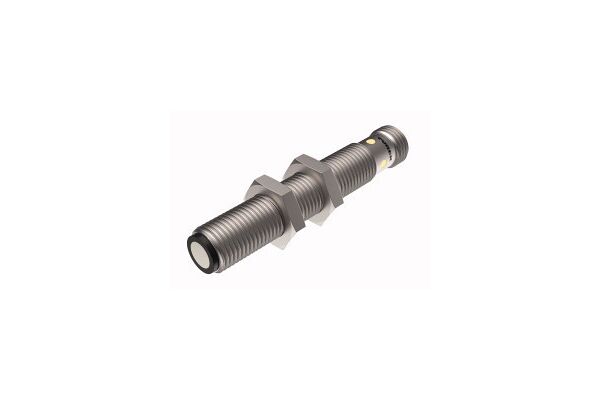

RU40U-M12-AP6X2-H1141 Ultrasonic Sensor, Diffuse Mode Sensor

RU40U-M12-AP6X2-H1141

Ultrasonic Sensor, Diffuse Mode Sensor, Operating voltage 10…30 VDC, Max. range 400 mm, Smooth sonic transducer face, Cylindrical housing M12, potted, Connection via M12 × 1 male connector, Teach range adjustable via connection cable, Blind zone: 4 cm, Range: 40 cm, Resolution: 0.5 mm, Aperture angle of sonic cone: ±15 °, Switching output, PNP, programmable via IO-Link, NO/NC programmable, IO-Link

  • SKU
    4047101436440
  • Manufacturer code
    100000279

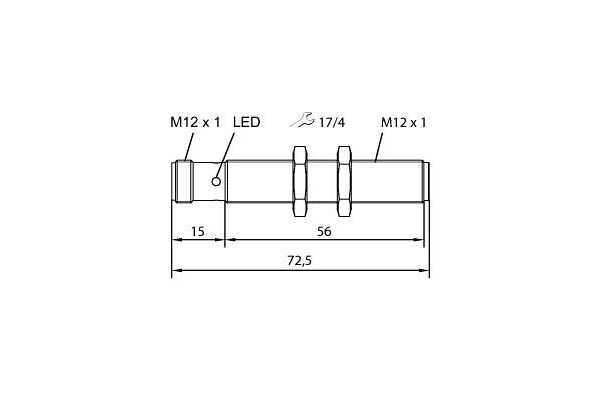

  • Length of sensor
    72.5 mm
  • Ambient temperature
    -10 - 60 °C
  • Supply voltage
    10 - 30 V
  • Switching frequency
    10.4 Hz
  • Diameter sensor
    12 mm
  • Measuring range length
    40 - 400 mm
  • No-load current
    50 mA
  • Relative repeat accuracy
    0.15 %
  • Relative linearity deflection
    0.5 %
  • Type of electric connection
    Plug-in connection
  • Type of switching output
    PNP
  • Type of switch function
    Programmable/configurable
  • Construction type housing
    Cylinder, screw-thread
  • Standard for interfaces
    Other
  • Material active area of sensor
    Plastic
  • Housing material
    Other
  • Connector gender
    male
  • NO/NC
    NO/NC contacts
  • Switching output
    PNP
  • Network protocol
    IO-link
  • Manufacturer Turck

Product attachments

file-41823-6356cc736abf9ac45dea50a55de1c26d.pdf (PDF, 1.18 MB)
