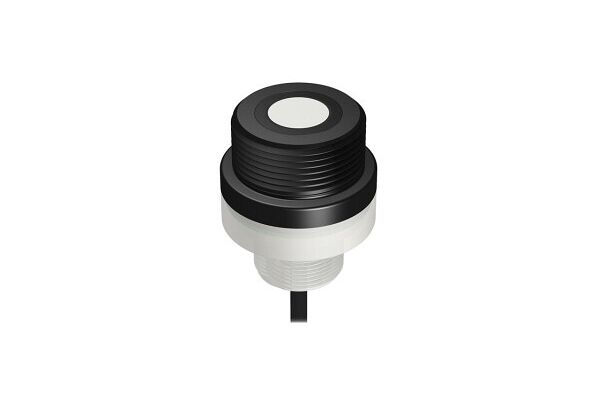

K50UX2CRA Ultrasonic Sensor, diffuse mode sensor, With RS485/Modbus RTU Serial Interface

K50UX2CRA

Ultrasonic Sensor, diffuse mode sensor, With RS485/Modbus RTU Serial Interface, Operating voltage 10…30 VDC, Max. range 3000 mm, Cable length 0.23 m, Protection class IP67, Operating temperature: -40…+70 °C, 230 mm cable, PVC, with male connector, M12 × 1, 5-pin, Range: 30…300 cm, Sound frequency: 114 kHz, Resolution > 1 mm, Operating voltage: 10…30 VDC or 3.5…5.5 VDC, RS485 interface for connecting as a MODBUS RTU slave

  • SKU
    0662488946128
  • Manufacturer code
    3094612
  • Length of sensor
    59.5 mm
  • Ambient temperature
    -40 - 70 °C
  • Supply voltage
    10 - 30 V
  • Diameter sensor
    50 mm
  • Measuring range length
    300 - 3000 mm
  • Type of electric connection
    Cable with connector
  • Standard for interfaces
    RS-485
  • Material active area of sensor
    Plastic
  • Housing material
    Plastic
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Connector gender
    male
  • Network protocol
    Modbus
  • Cable length (m)
    0.23

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-46050-446dd6472eb6e260d7fad1cee19196a7.pdf (PDF, 138.37 kB)
