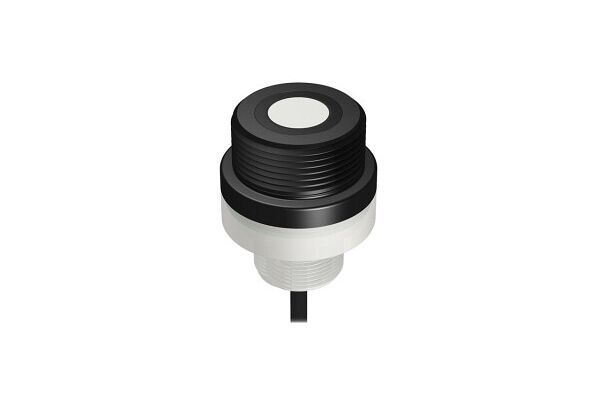

K50UX2ARA Ultrasonic Sensor, diffuse mode sensor, With RS485/Modbus RTU Serial Interface

K50UX2ARA

Ultrasonic Sensor, diffuse mode sensor, With RS485/Modbus RTU Serial Interface, Operating voltage 10…30 VDC, Max. range 1000 mm, Cable length 0.23 m, Protection class IP67, Operating temperature: -40…+70 °C, 230 mm cable, PVC, with male connector, M12 × 1, 5-pin, Range: 10…100 cm, Sound frequency: 224 kHz, Resolution > 1 mm, Operating voltage: 10…30 VDC or 3.5…5.5 VDC, RS485 interface for connecting as a MODBUS RTU slave

  • SKU
    0662488033118
  • Manufacturer code
    3804557

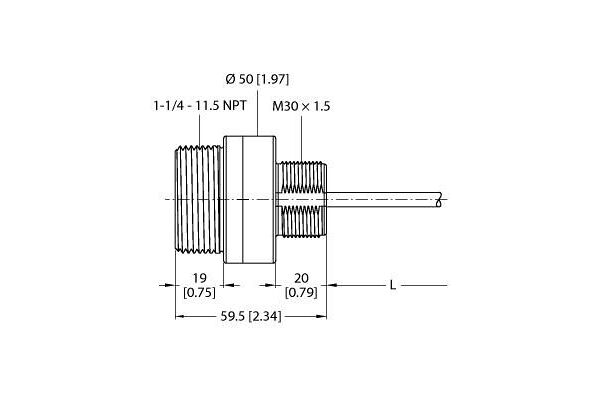

  • Length of sensor
    59.5 mm
  • Ambient temperature
    -40 - 70 °C
  • Supply voltage
    10 - 30 V
  • Diameter sensor
    50 mm
  • Measuring range length
    100 - 1000 mm
  • Type of electric connection
    Cable with connector
  • Construction type housing
    Cylinder, screw-thread
  • Standard for interfaces
    RS-485
  • Material active area of sensor
    Plastic
  • Housing material
    Plastic
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Connector gender
    male
  • Network protocol
    Modbus
  • Cable length (m)
    0.23

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-37188-49778a4a626ddb8e29d823c69e7f0fbe.pdf (PDF, 234.58 kB)
