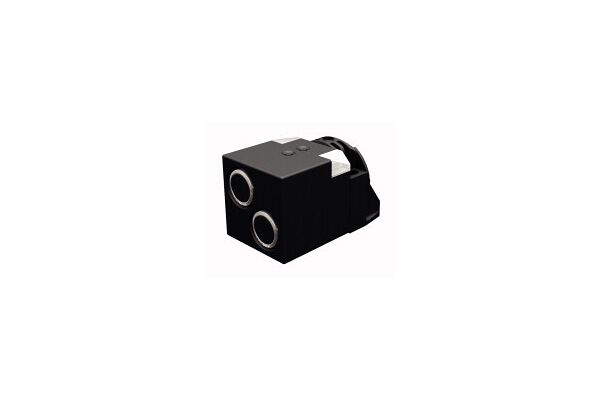

RU200-CK40-LIU2N8X2T-H1151 Ultrasonic Sensor, Diffuse Mode Sensor

RU200-CK40-LIU2N8X2T-H1151

Ultrasonic Sensor, Diffuse Mode Sensor, Operating voltage 15…30 VDC, Max. range 2000 mm, Separate transducers for transmitter and receiver, Rectangular housing 40 x 40 mm, Connection via M12 x 1 male, Teach range adjustable via button, Blind zone: 5 cm, Range: 200 cm, Resolution: 1 mm, Aperture angle of sonic cone: ±60 °, 1 × switching output, NPN, NO/NC programmable, 1 × analog output 4…20 mA/0…10 V

  • SKU
    4047101397505
  • Manufacturer code
    1610058

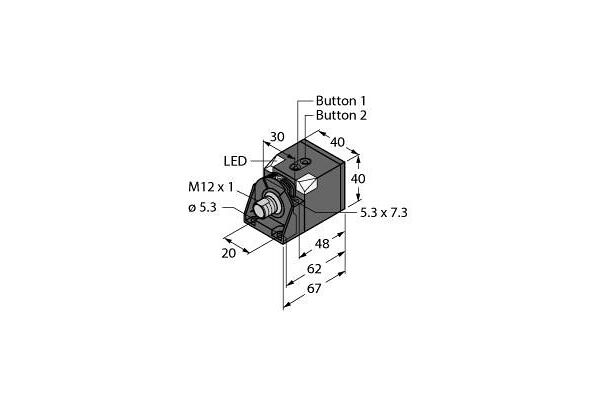

  • Width sensor
    40 mm
  • Height of sensor
    40 mm
  • Length of sensor
    67 mm
  • Ambient temperature
    0 - 70 °C
  • Supply voltage
    15 - 30 V
  • Switching frequency
    3 Hz
  • Measuring range length
    50 - 2000 mm
  • No-load current
    50 mA
  • Relative repeat accuracy
    0.25 %
  • Type of electric connection
    Plug-in connection
  • Type of switching output
    NPN
  • Type of switch function
    Programmable/configurable
  • Setting procedure
    Manual adjustment
  • Construction type housing
    Cuboid
  • Housing material
    Plastic
  • Type of analogy output
    4 mA ... 20 mA
  • Connector gender
    male
  • NO/NC
    NO/NC contacts
  • Switching output
    NPN
  • Manufacturer Turck

Product attachments

file-39388-839e5974382549c63c1efced0e70f4f8.pdf (PDF, 964.89 kB)
