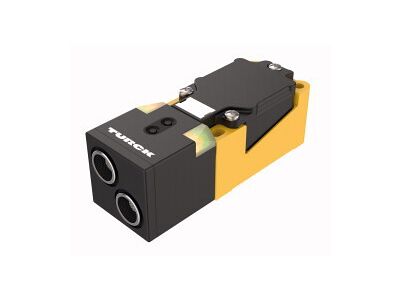

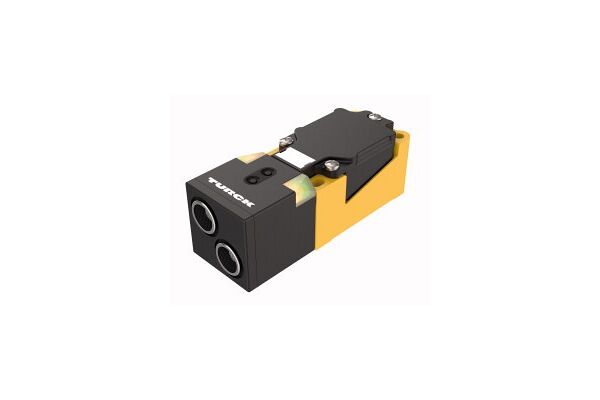

RU200-CP40-2UN8X2T Ultrasonic Sensor, Diffuse Mode Sensor

RU200-CP40-2UN8X2T

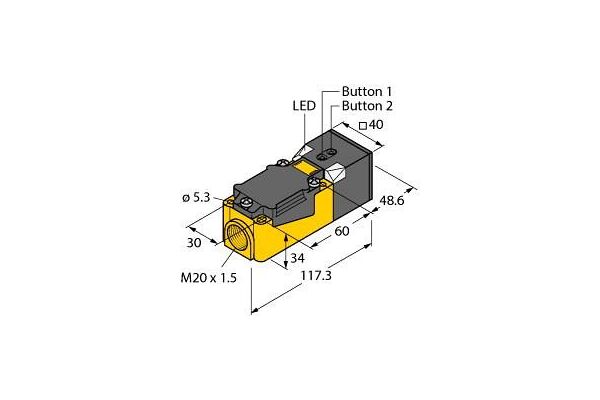

Ultrasonic Sensor, Diffuse Mode Sensor, Operating voltage 15…30 VDC, Max. range 2000 mm, Separate transducers for transmitter and receiver, Rectangular housing 40 x 40 x 166 mm, Connection via screw terminals, Terminal chamber for M20 x 1.5 cable gland, Teach range adjustable via button, Blind zone: 5 cm, Range: 200 cm, Resolution: 1 mm, Aperture angle of sonic cone: ±60 °, 2 x switching outputs, NPN, NO/NC programmable

  • SKU
    4047101397475
  • Manufacturer code
    1610055
  • Width sensor
    40 mm
  • Height of sensor
    40 mm
  • Length of sensor
    166 mm
  • Ambient temperature
    0 - 70 °C
  • Supply voltage
    15 - 30 V
  • Switching frequency
    3 Hz
  • Measuring range length
    50 - 2000 mm
  • No-load current
    50 mA
  • Relative repeat accuracy
    0.25 %
  • Type of electric connection
    Clamp
  • Type of switching output
    NPN
  • Type of switch function
    Programmable/configurable
  • Setting procedure
    Manual adjustment
  • Construction type housing
    Cuboid
  • Housing material
    Plastic
  • NO/NC
    NO/NC contacts
  • Switching output
    NPN
  • Manufacturer Turck

Product attachments

file-30850-d8932f374ddf7c4b987defc3f3e134ab.pdf (PDF, 1.02 MB)
