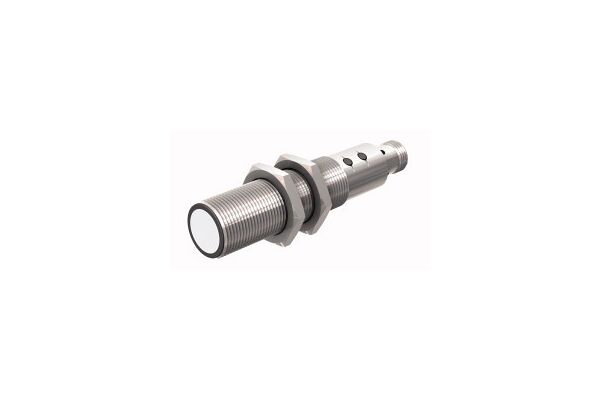

Ultrasonic Sensor, Diffuse Mode Sensor, Operating voltage 15…30 VDC, Max. range 1300 mm, Smooth sonic transducer face, Cylindrical housing M18, potted, Connection via M12 x 1 male, Teach range adjustable via pushbutton or adapter, Temperature compensation, Blind zone: 15 cm, Range: 130 cm, Resolution: 1 mm, Aperture angle of sonic cone: ±16 °, 1 × switching output, PNP/NPN, 1 × analog output, 4…20 mA / 0…10 V / additional switching output, PNP/NPN, NO/NC programmable, Transmission of process value and parametrization via IO-link, ATEX II 3 G approval, Gases and vapors, Group IIC, Zone 2, Dust, Group IIIC, Zone 22, When used in hazardous areas, the special conditions of the approval must be observed, SC-M12/3GD safety clips are included in delivery and prevent inadvertent disconnection of the energized cable
- SKU4047101373653
- Manufacturer code1610072
- Length of sensor90 mm
- Ambient temperature-25 - 45 °C
- Supply voltage15 - 30 V
- Switching frequency6.9 Hz
- Diameter sensor18 mm
- Measuring range length150 - 1300 mm
- No-load current50 mA
- Relative repeat accuracy0.15 %
- Relative linearity deflection0.5 %
- Type of electric connectionPlug-in connection
- Type of switching outputPNP/NPN
- Type of switch functionProgrammable/configurable
- Setting procedureManual adjustment
- Construction type housingCylinder, screw-thread
- Standard for interfacesOther
- Material active area of sensorPlastic
- Housing materialStainless steel
- Type of analogy output4 mA ... 20 mA
- Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
- Explosion safety category for dustATEX dust-ex-protection, Cat. 3D
- Connector gendermale
- NO/NCNO/NC contacts
- Switching outputPNP/NPN
- Network protocolIO-link
- Manufacturer Turck
