NI35-CP40-VP4X2/S369-F 30M Inductive Sensor, For Underwater Applications

NI35-CP40-VP4X2/S369-F 30M

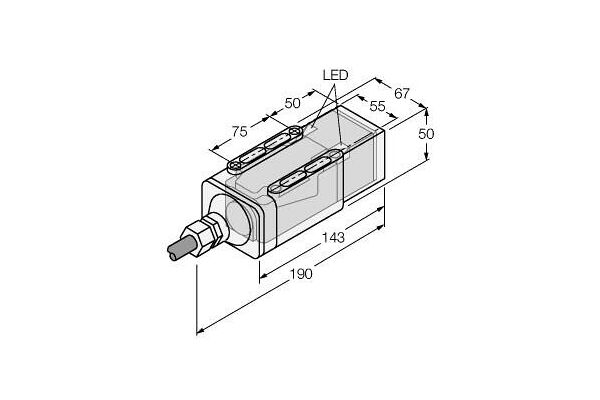

Inductive Sensor, For Underwater Applications, Operating voltage 10…65 VDC, Rated switching distance 35 mm, Non-flush, Cable length 30 m, Rectangular, height 67 mm, UV and ozone resistance, Plastic, Ultem, Sensor potted in the housing, Protection class IP68, 50 m water column, DC 4-wire, 10…65 VDC, Changeover contact, PNP output, Cable connection

  • SKU
    4047101075694
  • Manufacturer code
    1569425
  • Length of sensor
    190 mm
  • Flush / Non-flush
    Not flat
  • Switching distance
    35 mm
  • Suitable for safety functions
    false
  • Type of switch function
    Change-over contact
  • Type of switching output
    PNP
  • Type of electric connection
    Cable
  • Type of actuation
    Metallic Target
  • Construction type housing
    Cuboid
  • Supply voltage
    10 - 65 V
  • Voltage type
    DC
  • Switching frequency
    150 Hz
  • Compression-resistant
    false
  • Width sensor
    67 mm
  • Height of sensor
    50 mm
  • Housing material
    Plastic
  • Type of switching output
    PNP
  • Flush / Non-flush
    Non-flush
  • Cable length (m)
    30
  • Manufacturer Turck

Product attachments

file-56047-2ecf4bcc5d8ab67e250f396cd33f951f.pdf (PDF, 246.01 kB)
