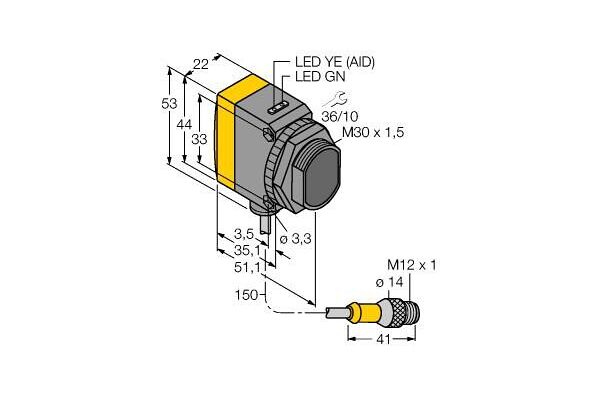

QS30RRXSH2OQ5 Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), For Water Detectio

QS30RRXSH2OQ5

Photoelectric Sensor, Opposed Mode Sensor (Emitter/Receiver), For Water Detection, Operating voltage 10…30 VDC, Max. range 8000 mm, Cable length 0.15 m, Male M12 × 1, 5-pin, Protection class IP67, Male connector, M12 × 1, 5-pole, Super high-power water detection sensor, Operating voltage: 10…30 VDC, Switching output, bipolar, dark operation

  • SKU
    0662488833060
  • Manufacturer code
    3083306
  • Setting procedure
    Other
  • Type of electric connection
    Connector M12
  • Type of switching output
    PNP/NPN
  • Type of switch function
    Normally open contact (NO)
  • Construction type housing
    Cuboid
  • Width sensor
    22 mm
  • Height of sensor
    57 mm
  • Length of sensor
    54.3 mm
  • Sensing mode
    Dark switching
    Dark switching
  • Material of optical surface
    Plastic
  • Ambient temperature
    -20 - 60 °C
  • Response time
    10 s
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    8000 mm
  • Max. switching distance
    8000 mm
  • Diameter sensor
    30 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Type of switching output
    PNP/NPN
  • Connector gender
    male - male
  • Cable length (m)
    0.15

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-34987-19d4f987e5fd7aede75d55b51f62266b.pdf (PDF, 561.79 kB)
