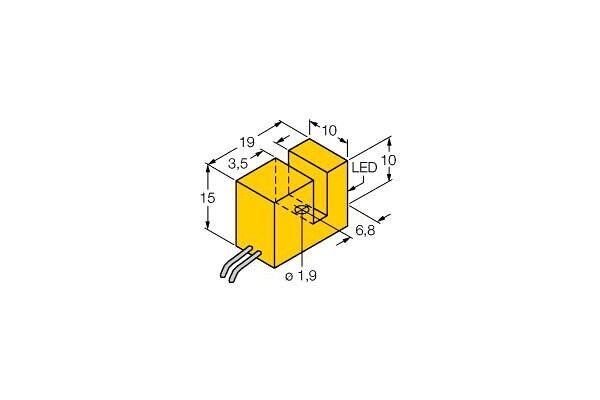

SI3.5-K10-Y1X Inductive Sensor, Slot-type

SI3.5-K10-Y1X

Inductive Sensor, Slot-type, Cable length 0.5 m, Slot sensor, height 10 mm, Plastic, PBT‐GF30‐V0, DC 2-wire, nom. 8.2 VDC, Output acc. to DIN EN 60947-5-6 (NAMUR), Cable connection, ATEX category II 2 G, Ex Zone 1, ATEX category II 1 D, Ex Zone 20 for temperatures up to +70 °C, SIL 2 acc. to IEC 61508

  • SKU
    4047101150025
  • Manufacturer code
    40490
  • Length of sensor
    19 mm
  • Suitable for safety functions
    true
  • Type of switching output
    NAMUR
  • Type of electric connection
    Cable
  • Type of actuation
    Metallic Target
  • Construction type housing
    Special construction
  • SIL according to IEC 61508
    None
  • Performance level according to EN ISO 13849-1
    Level c
  • Voltage type
    DC
  • Switching frequency
    3000 Hz
  • Compression-resistant
    false
  • Explosion safety category for gas
    ATEX gas-ex-protection, Cat. 2G
  • Explosion safety category for dust
    ATEX dust-ex-protection, Cat. 1D
  • Width sensor
    15 mm
  • Height of sensor
    10 mm
  • Housing material
    Plastic
  • Atex category
    ATEX category II 1 D
    ATEX category II 2 G
  • Approvals / Compliance
    SIL 2
  • Cable length (m)
    0.5
  • Manufacturer Turck

Product attachments

file-37319-cbc14a972c1be0a17b60e61432067678.pdf (PDF, 230.96 kB)
